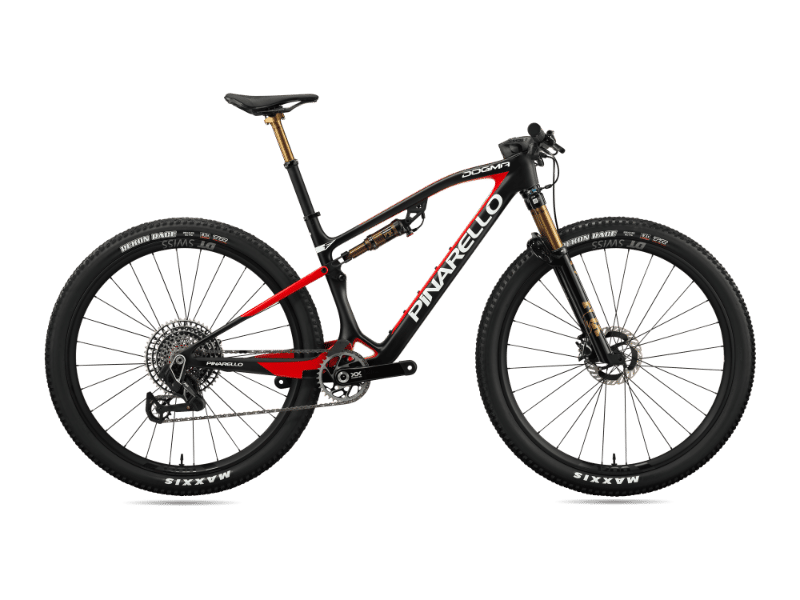

2026 Pinarello Dogma XC geometry
Full frame geometry for the 2026 Pinarello Dogma XC, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 584.9 | 426.5 | 75.5 | 69.8 | 85 | 578 | 405 | 46 | 699.1 | 427.5 | 1126.6 | 44 | 67.5 |
| M | 589.5 | 455 | 75.5 | 69.8 | 90 | 608 | 435 | 46 | 729.2 | 427.5 | 1156.7 | 44 | 67.5 |
| L | 605.8 | 475 | 75.3 | 69.8 | 105 | 634 | 470 | 46 | 750 | 427.5 | 1177.5 | 44 | 68 |
| XL | 619.7 | 495 | 75.2 | 69.8 | 120 | 659.1 | 500 | 46 | 775.6 | 427.5 | 1203.1 | 44 | 68 |
All measurements in millimetres unless marked (°) for angles.
