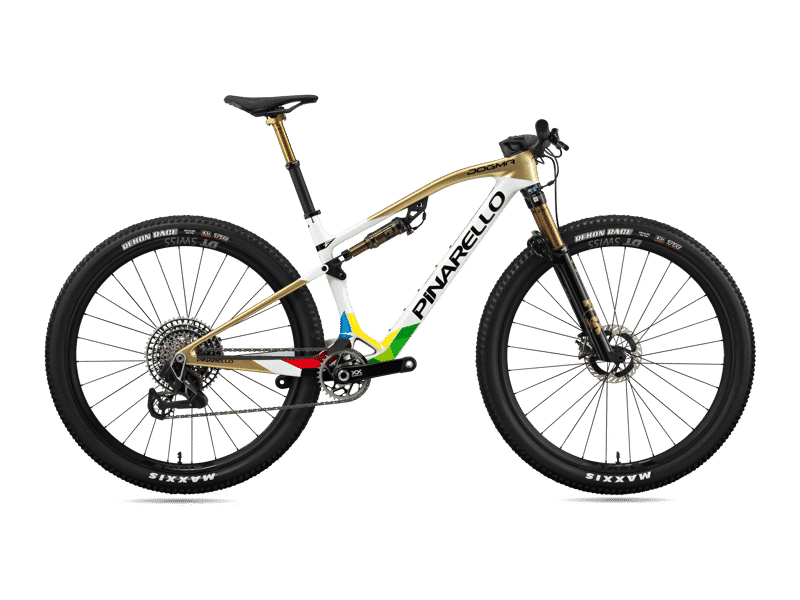

2024 Pinarello Dogma XC geometry
Full frame geometry for the 2024 Pinarello Dogma XC, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 584.9 | 427 | 75.5 | 67.5 | 85 | 578 | 405 | 747 | 427.5 | 699.1 | 44 | 105.2 |
| S | 584.9 | 427 | 75.5 | 67.5 | 85 | 578 | 405 | 747 | 427.5 | 699.1 | 44 | 105.2 |
| M | 589.5 | 455 | 75.5 | 67.5 | 90 | 608 | 440 | 747 | 427.5 | 729.2 | 44 | 105.2 |
| M | 589.5 | 455 | 75.5 | 67.5 | 90 | 608 | 440 | 747 | 427.5 | 729.2 | 44 | 105.2 |
| L | 605.8 | 480 | 75.3 | 68 | 105 | 639 | 475 | 749 | 427.5 | 755 | 44 | 101.6 |
| L | 605.8 | 480 | 75.3 | 68 | 105 | 639 | 475 | 749 | 427.5 | 755 | 44 | 101.6 |
| XL | 620 | 505 | 75.2 | 68 | 120 | 669 | 510 | 751 | 428 | 786 | 44 | 102 |
All measurements in millimetres unless marked (°) for angles.
