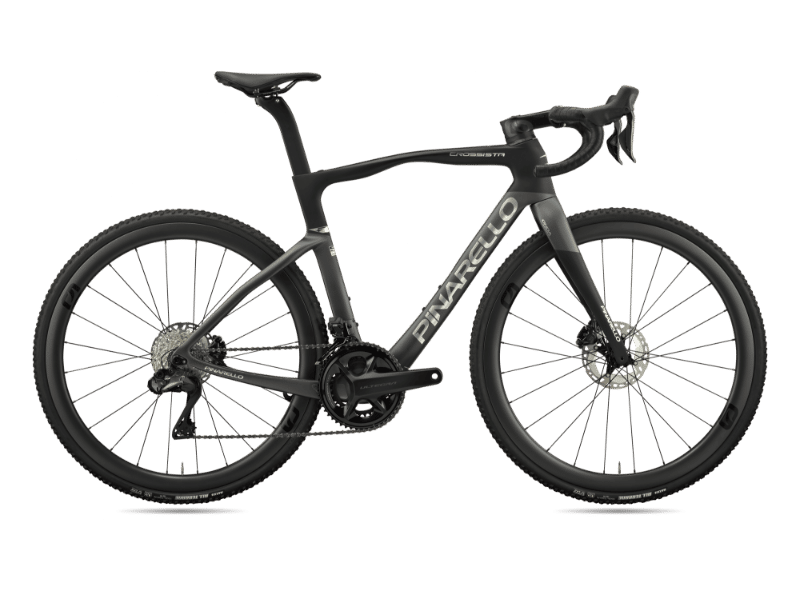

2026 Pinarello Crossista F geometry
Full frame geometry for the 2026 Pinarello Crossista F, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 480 | 537.5 | 360.4 | 75 | 70.5 | 106 | 480 | 65 | 425 | 50 |
| 495 | 556.5 | 366 | 74.5 | 71 | 124 | 495 | 65 | 425 | 50 |
| 510 | 572.5 | 371.6 | 74 | 71 | 141 | 510 | 65 | 425 | 50 |
| 530 | 591.4 | 376.3 | 73.5 | 71 | 161 | 530 | 65 | 425 | 50 |
| 550 | 609.7 | 382.2 | 73 | 72 | 176 | 550 | 65 | 425 | 50 |
| 570 | 625.9 | 387 | 72.5 | 72 | 193 | 570 | 65 | 425 | 50 |
All measurements in millimetres unless marked (°) for angles.
