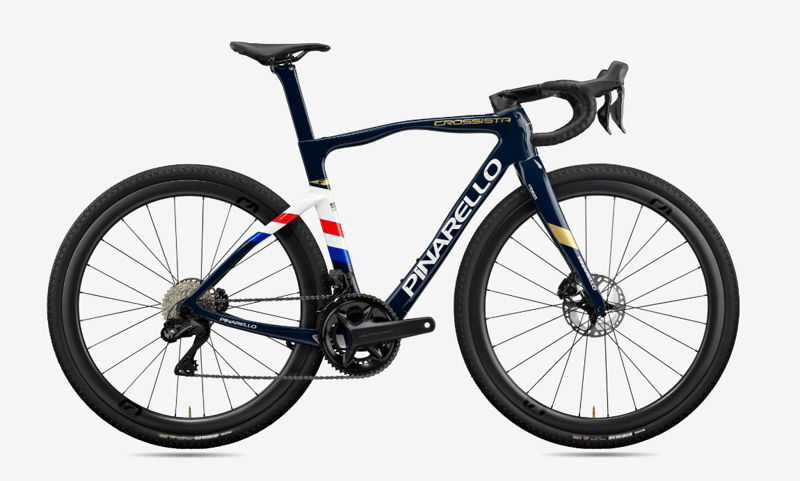

2023 Pinarello Crossista F geometry
Full frame geometry for the 2023 Pinarello Crossista F, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 480 | 522 | 366 | 75 | 70.5 | 100 | 510 | 490 | 65 | 425 | 50 |
| 495 | 541 | 371 | 74.5 | 71 | 118 | 525 | 505 | 65 | 425 | 50 |
| 510 | 557 | 377 | 74 | 71 | 135 | 540 | 520 | 65 | 425 | 50 |
| 530 | 576 | 382 | 73.5 | 71 | 155 | 555 | 540 | 65 | 425 | 50 |
| 550 | 594 | 387 | 73 | 72 | 170 | 570 | 560 | 65 | 425 | 50 |
All measurements in millimetres unless marked (°) for angles.
