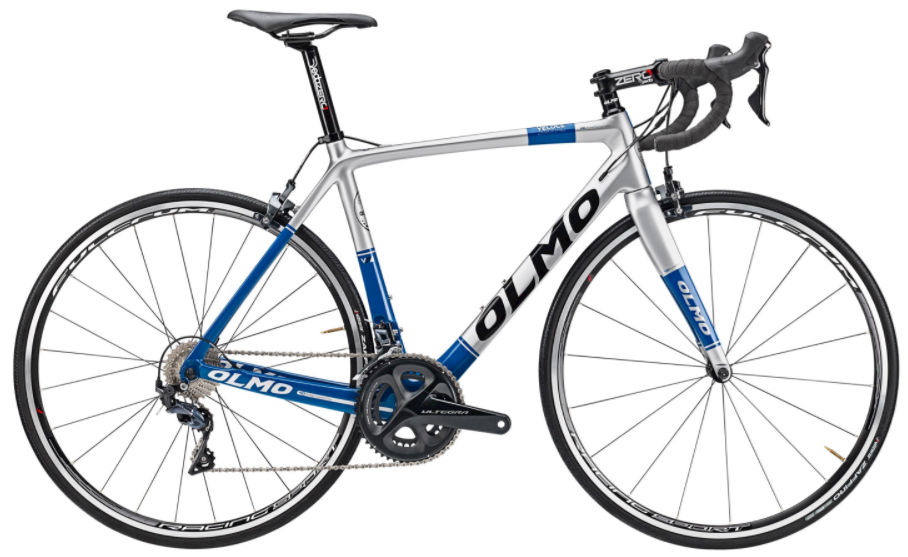

2017 Olmo Zerouno geometry
Full frame geometry for the 2017 Olmo Zerouno, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 47 | 512 | 372 | 74.5 | 72 | 110 | 515 | 470 | 758 | 68 |
| 50 | 527 | 377 | 74.5 | 72 | 125 | 525 | 500 | 781 | 68 |
| 53 | 546 | 386 | 74.5 | 73 | 145 | 537 | 530 | 806 | 68 |
| 55 | 564 | 388 | 73.5 | 73 | 160 | 555 | 550 | 827 | 68 |
| 58 | 583 | 392 | 73 | 73 | 180 | 570 | 580 | 853 | 68 |
| 61 | 603 | 401 | 73 | 73.5 | 200 | 585 | 610 | 879 | 68 |
All measurements in millimetres unless marked (°) for angles.
