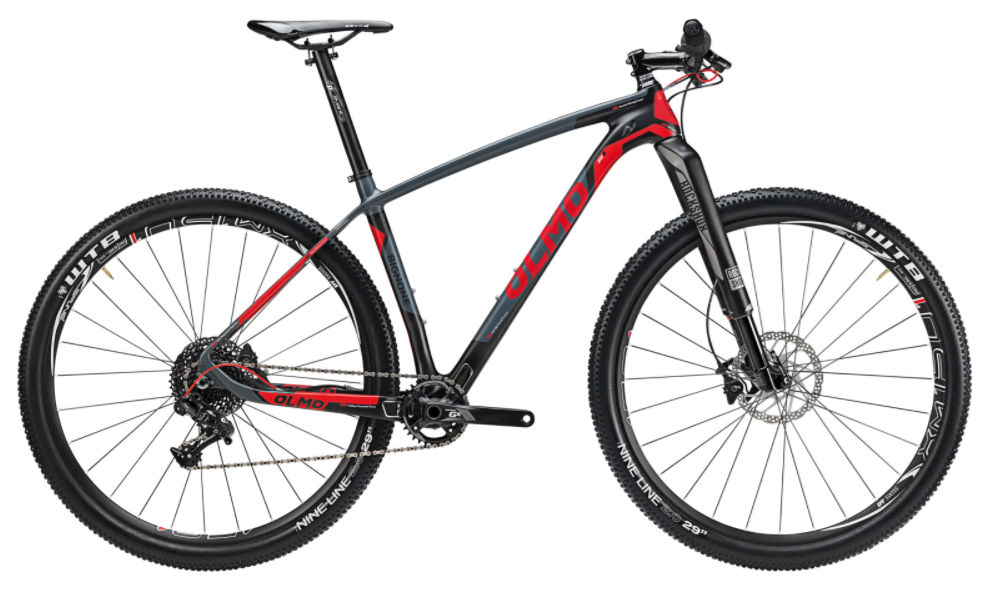

2017 Olmo Bignone geometry
Full frame geometry for the 2017 Olmo Bignone, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 43 | 605 | 405 | 73.4 | 70.5 | 100 | 585 | 425 | 838 | 50 |
| 48 | 612 | 418 | 73 | 71 | 105 | 605 | 475 | 868 | 50 |
| 53 | 616 | 442 | 73 | 71 | 110 | 630 | 525 | 897 | 50 |
All measurements in millimetres unless marked (°) for angles.
