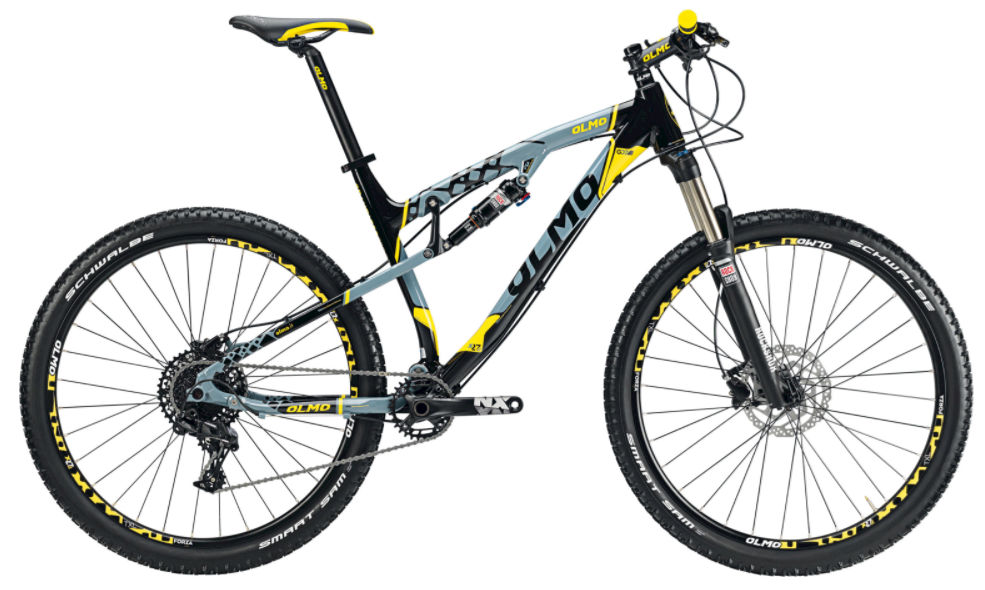

2017 Olmo Zerodue geometry
Full frame geometry for the 2017 Olmo Zerodue, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 43 | 604 | 402 | 73.5 | 68.5 | 120 | 580 | 430 | 841 | 30 |
| 48 | 604 | 431 | 73.5 | 68.5 | 120 | 610 | 480 | 867 | 30 |
| 38 | 615 | 409 | 74 | 71 | 110 | 583 | 380 | 820 | 30 |
All measurements in millimetres unless marked (°) for angles.
