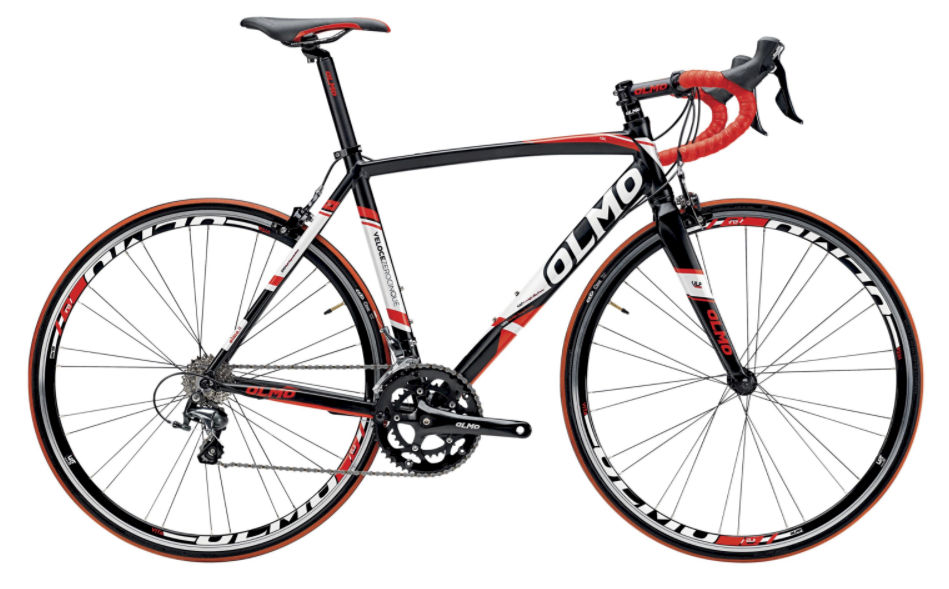

2017 Olmo Zerocinque geometry
Full frame geometry for the 2017 Olmo Zerocinque, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 46 | 461 | 372 | 74.5 | 72 | 130 | 519 | 460 | 727 | 68 |
| 49 | 461 | 385 | 74.5 | 72 | 130 | 532 | 490 | 743 | 68 |
| 52 | 477 | 394 | 74.3 | 72.5 | 145 | 547 | 520 | 767 | 68 |
| 55 | 507 | 389 | 74.3 | 73 | 175 | 552 | 550 | 797 | 68 |
| 58 | 536 | 394 | 72.8 | 73 | 205 | 581 | 580 | 830 | 68 |
All measurements in millimetres unless marked (°) for angles.
