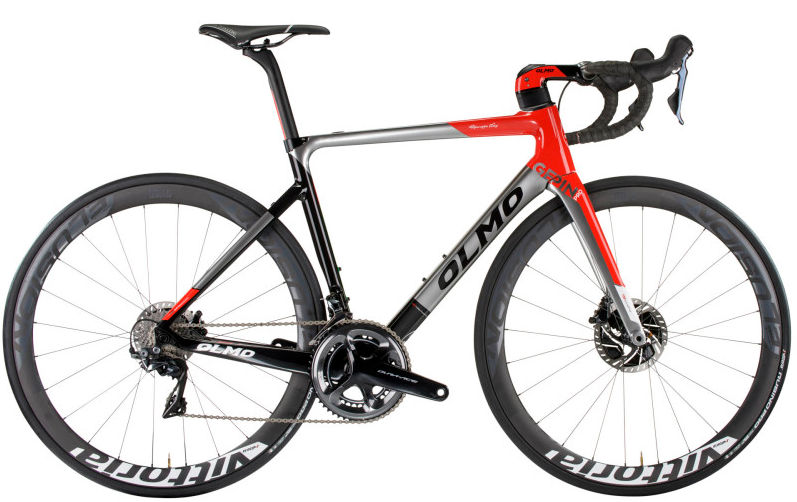

2019 Olmo Gepin Pro Disc geometry
Full frame geometry for the 2019 Olmo Gepin Pro Disc, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) |
|---|---|---|---|---|---|---|---|
| 43 | 511 | 373 | 74.5 | 71 | 110 | 515 | 430 |
| 47 | 529 | 379 | 74 | 72 | 125 | 530 | 470 |
| 50 | 548 | 382 | 73.5 | 72.5 | 145 | 545 | 500 |
| 53 | 575 | 390 | 73 | 73 | 170 | 566 | 530 |
| 56 | 610 | 392 | 72.5 | 73.5 | 205 | 585 | 560 |
All measurements in millimetres unless marked (°) for angles.
