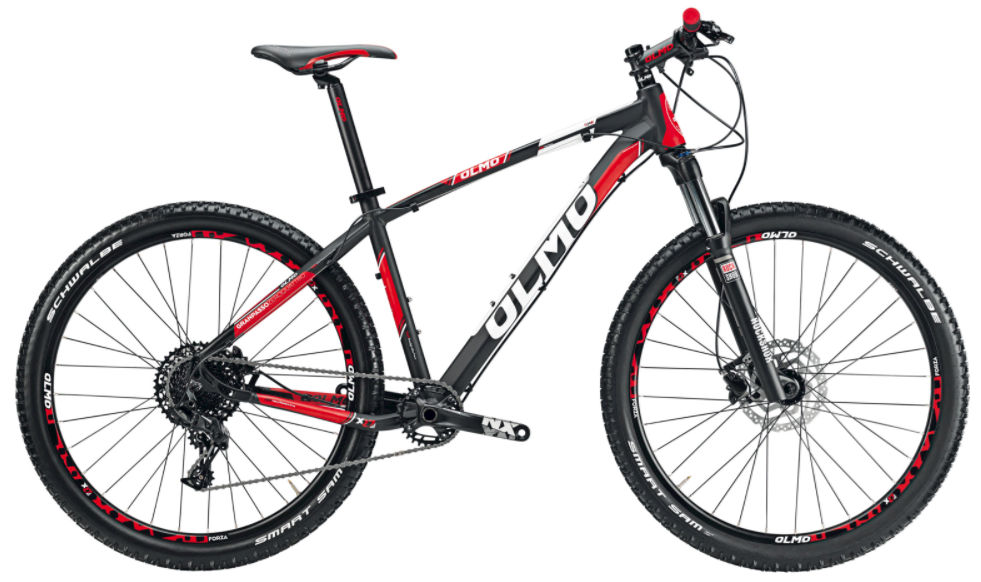

2017 Olmo Zeroquattro geometry
Full frame geometry for the 2017 Olmo Zeroquattro, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 42 | 617 | 424 | 74 | 71 | 120 | 599 | 420 | 785 | 68 |
| 47 | 617 | 439 | 74 | 71 | 120 | 614 | 470 | 811 | 68 |
| 52 | 650 | 451 | 74 | 71 | 120 | 634 | 520 | 854 | 68 |
All measurements in millimetres unless marked (°) for angles.
