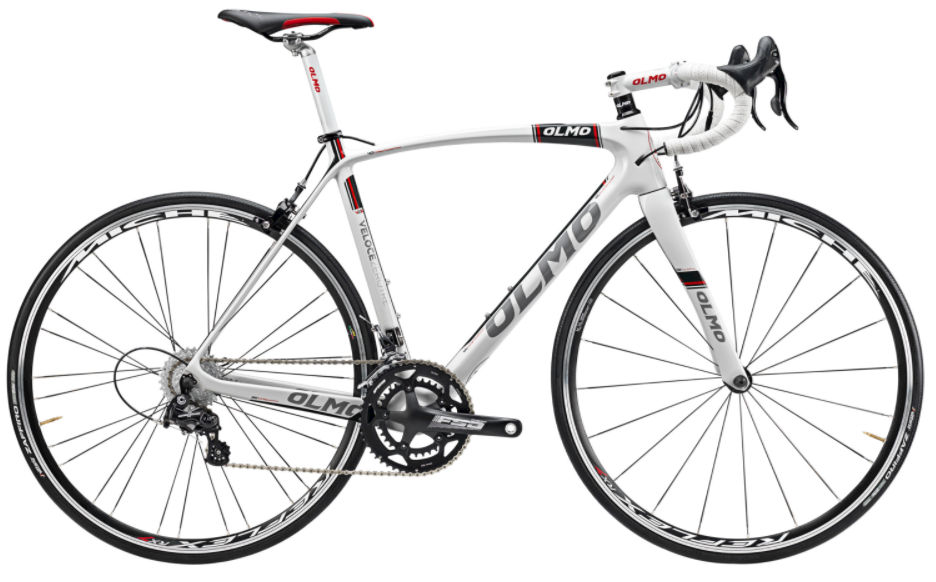

2017 Olmo Zerotre geometry
Full frame geometry for the 2017 Olmo Zerotre, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 47 | 507 | 384 | 75 | 72.2 | 110 | 515 | 470 | 755 | 68 |
| 50 | 522 | 385 | 74.5 | 72.5 | 125 | 530 | 500 | 779 | 68 |
| 53 | 536 | 386 | 73.5 | 72.8 | 140 | 545 | 530 | 803 | 68 |
| 56 | 557 | 395 | 73 | 73 | 160 | 565 | 560 | 829 | 68 |
| 59 | 578 | 406 | 72.8 | 73.5 | 180 | 585 | 590 | 856 | 68 |
All measurements in millimetres unless marked (°) for angles.
