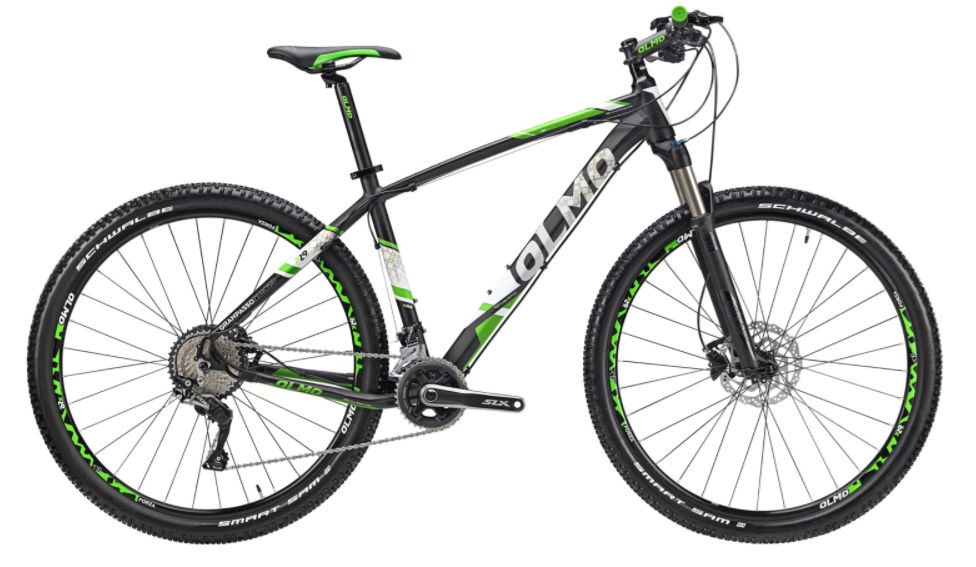

2017 Olmo Zerosei geometry
Full frame geometry for the 2017 Olmo Zerosei, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 38 | 617 | 413 | 74 | 71 | 110 | 587 | 380 | 764 | 68 |
| 42 | 619 | 424 | 74 | 72 | 110 | 601 | 420 | 786 | 68 |
| 47 | 628 | 441 | 74 | 72 | 120 | 622 | 470 | 817 | 68 |
| 52 | 652 | 453 | 74 | 72 | 145 | 640 | 520 | 855 | 68 |
All measurements in millimetres unless marked (°) for angles.
