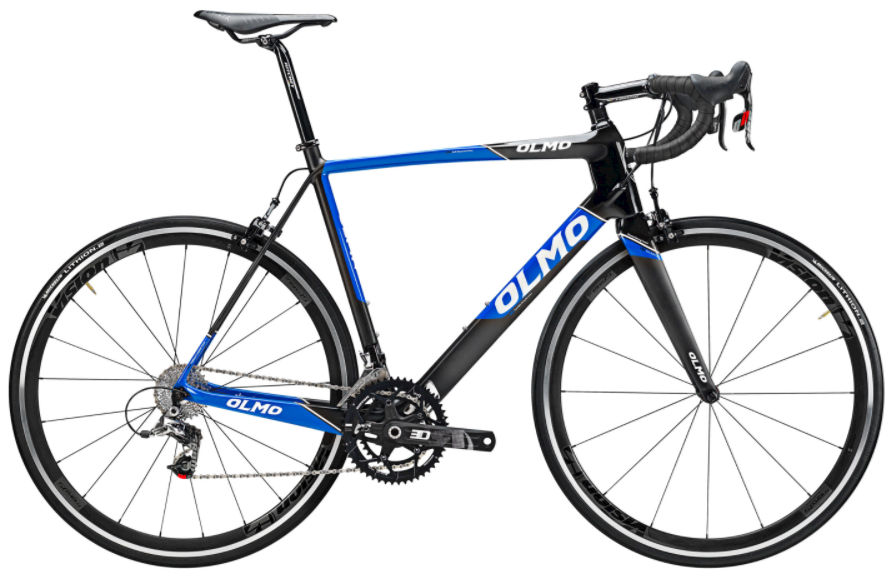

2017 Olmo Gepin geometry
Full frame geometry for the 2017 Olmo Gepin, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 48 | 530 | 373 | 74 | 73 | 125 | 525 | 480 | 773 | 68 |
| 51 | 540 | 382 | 74 | 72.5 | 138 | 537 | 510 | 793 | 68 |
| 54 | 558 | 385 | 73.5 | 73 | 155 | 550 | 540 | 819 | 68 |
| 57 | 580 | 390 | 73 | 73 | 180 | 567 | 570 | 846 | 68 |
| 60 | 590 | 404 | 72.5 | 73 | 192 | 580 | 600 | 868 | 68 |
All measurements in millimetres unless marked (°) for angles.
