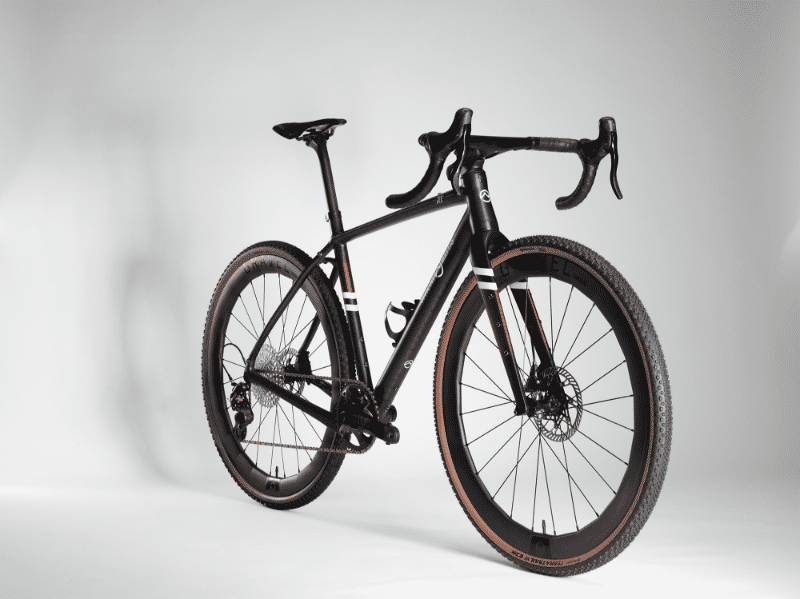

2025 Officine Mattio Santiago RT geometry
Full frame geometry for the 2025 Officine Mattio Santiago RT, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 511 | 342 | 73 | 70 | 90 | 500 | 465 | 722 | 70 | 557 | 430 | 976 | 50 |
| S | 529 | 366 | 73 | 70 | 110 | 530 | 480 | 738 | 70 | 588 | 435 | 1013 | 50 |
| M | 554 | 380 | 73 | 71.5 | 130 | 550 | 510 | 765 | 70 | 595 | 435 | 1020 | 50 |
| L | 577 | 388 | 72.5 | 72.5 | 150 | 570 | 530 | 786 | 70 | 601 | 435 | 1027 | 50 |
| XL | 600 | 401 | 72.5 | 72.5 | 175 | 590 | 550 | 807 | 70 | 621 | 435 | 1047 | 50 |
| XXL | 626 | 413 | 72.5 | 73 | 200 | 610 | 570 | 830 | 70 | 636 | 435 | 1061 | 50 |
All measurements in millimetres unless marked (°) for angles.
