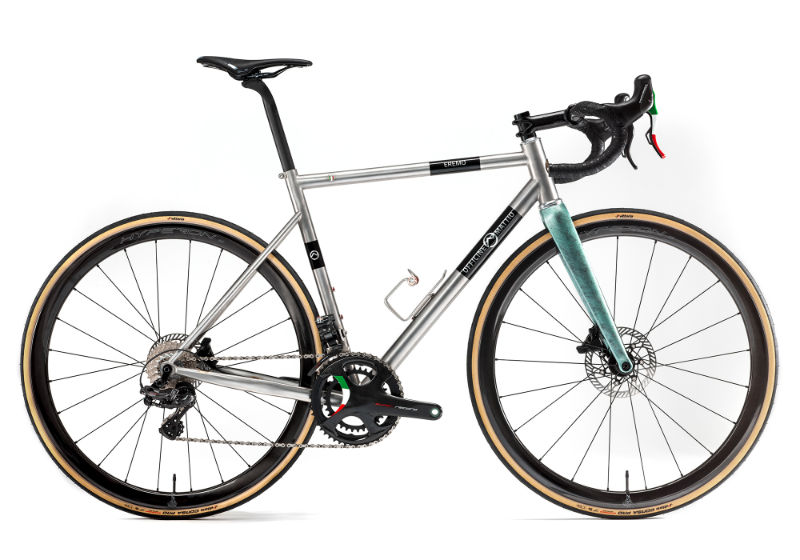

2025 Officine Mattio Eremo Disc geometry
Full frame geometry for the 2025 Officine Mattio Eremo Disc, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 524 | 366 | 74.8 | 71 | 105 | 510 | 737 | 72 | 574 | 408 | 968 | 45 | 71 |
| 50 | 531 | 371 | 74.5 | 71.5 | 110 | 520 | 749 | 72 | 576 | 409 | 970 | 45 | 67 |
| 52 | 535 | 380 | 74 | 72 | 115 | 535 | 765 | 70 | 583 | 410 | 978 | 45 | 64 |
| 54 | 556 | 383 | 73.8 | 72.5 | 135 | 545 | 782 | 70 | 587 | 410 | 982 | 45 | 61 |
| 56 | 571 | 390 | 73.5 | 73 | 150 | 560 | 803 | 69 | 595 | 411 | 993 | 45 | 58 |
| 58 | 590 | 395 | 73 | 73.5 | 170 | 575 | 818 | 67 | 600 | 411 | 999 | 45 | 55 |
| 60 | 610 | 398 | 72.5 | 73.5 | 190 | 590 | 842 | 67 | 610 | 413 | 1008 | 45 | 55 |
| 63 | 633 | 395 | 72 | 73.5 | 215 | 600 | 864 | 67 | 613 | 415 | 1012 | 45 | 55 |
All measurements in millimetres unless marked (°) for angles.
