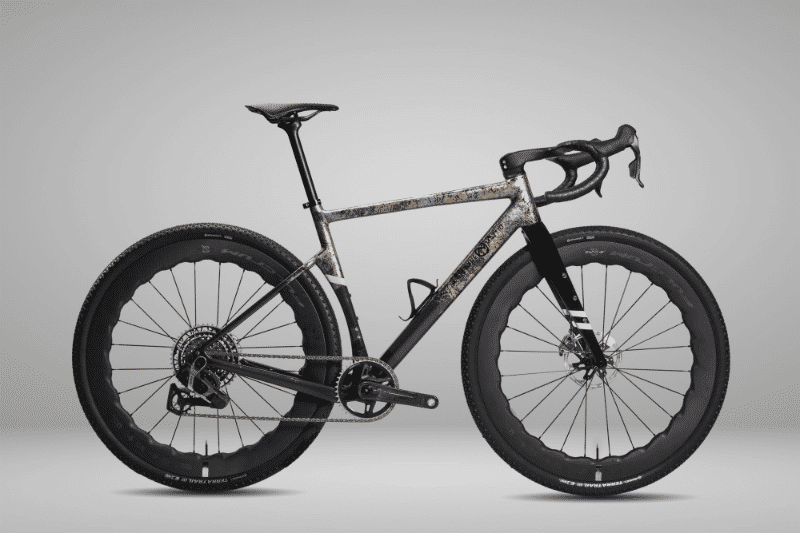

2026 Officine Mattio BISALTA geometry
Full frame geometry for the 2026 Officine Mattio BISALTA, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 465 | 519 | 344 | 90 | 500 | 740 | 70 | 564 | 430 | 970 | 50 |
| 480 | 529 | 371 | 110 | 530 | 755 | 70 | 588 | 435 | 1010 | 50 |
| 510 | 550 | 380 | 130 | 550 | 776 | 70 | 595 | 435 | 1018 | 50 |
| 530 | 576 | 389 | 150 | 570 | 800 | 70 | 602 | 435 | 1024 | 50 |
| 550 | 599 | 400 | 175 | 590 | 821 | 70 | 621 | 435 | 1044 | 50 |
| 570 | 626 | 413 | 200 | 610 | 830 | 70 | 636 | 435 | 1061 | 50 |
All measurements in millimetres unless marked (°) for angles.
