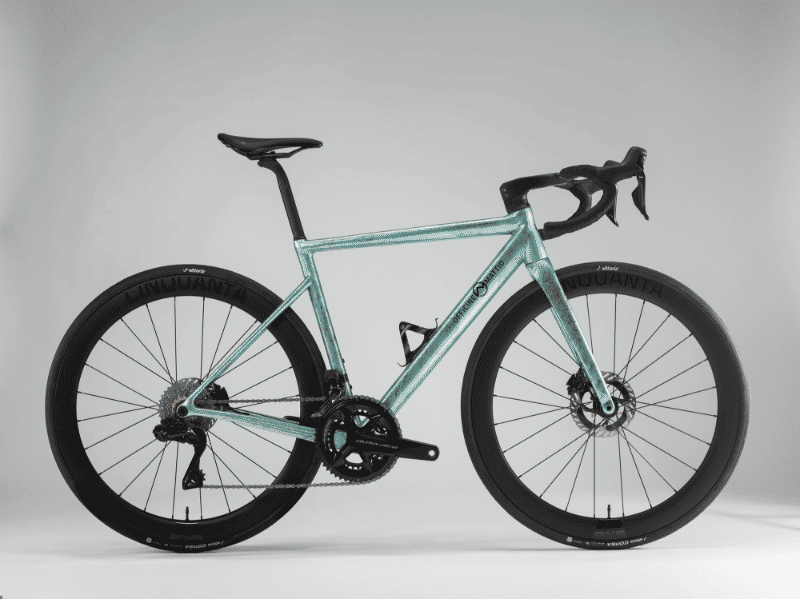

2025 Officine Mattio LEMMA 3.0 geometry
Full frame geometry for the 2025 Officine Mattio LEMMA 3.0, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 522 | 366 | 74.8 | 71 | 111 | 510 | 440 | 733 | 75 | 570 | 408 | 967 | 43 | 73 |
| 50 | 528 | 372 | 74.5 | 71.5 | 117 | 520 | 460 | 747 | 74 | 574 | 408 | 971 | 43 | 69 |
| 52 | 536 | 382 | 74 | 72 | 125 | 537 | 485 | 765 | 72 | 583 | 408 | 977 | 43 | 66 |
| 54 | 553 | 386 | 74 | 72.5 | 143 | 545 | 510 | 787 | 70 | 587 | 408 | 985 | 43 | 63 |
| 56 | 568 | 391 | 73.5 | 73 | 159 | 560 | 530 | 805 | 69 | 593 | 410 | 993 | 43 | 60 |
| 58 | 587 | 396 | 73 | 73 | 181 | 576 | 550 | 826 | 67 | 599 | 412 | 1002 | 43 | 56 |
| 60 | 607 | 400 | 72.5 | 73.5 | 200 | 590 | 575 | 847 | 67 | 607 | 412 | 1010 | 43 | 56 |
| 63 | 627 | 397 | 72 | 73.5 | 221 | 600 | 605 | 868 | 67 | 611 | 412 | 1014 | 43 | 56 |
All measurements in millimetres unless marked (°) for angles.
