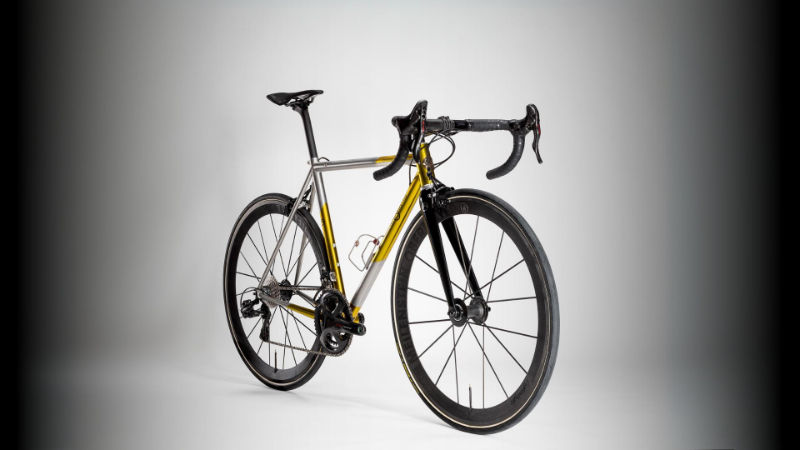

2025 Officine Mattio Eremo Classic geometry
Full frame geometry for the 2025 Officine Mattio Eremo Classic, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 505 | 371 | 74.8 | 71 | 90 | 510 | 460 | 737 | 72 | 572 | 406 | 966 | 45 | 71 |
| 50 | 512 | 376 | 74.5 | 71.5 | 95 | 520 | 480 | 750 | 72 | 576 | 407 | 970 | 45 | 67 |
| 52 | 516 | 386 | 74 | 72 | 100 | 535 | 500 | 763 | 70 | 583 | 408 | 977 | 45 | 64 |
| 54 | 537 | 388 | 73.8 | 72.5 | 120 | 545 | 520 | 783 | 70 | 587 | 408 | 982 | 45 | 61 |
| 56 | 553 | 396 | 73.5 | 73 | 135 | 560 | 540 | 800 | 70 | 595 | 409 | 993 | 45 | 58 |
| 58 | 571 | 401 | 73 | 73.5 | 155 | 575 | 560 | 821 | 70 | 601 | 410 | 999 | 45 | 55 |
| 60 | 590 | 404 | 72.5 | 73.5 | 175 | 590 | 580 | 840 | 70 | 610 | 411 | 1009 | 45 | 55 |
| 63 | 614 | 401 | 72 | 73.5 | 200 | 600 | 610 | 865 | 70 | 614 | 413 | 1013 | 45 | 55 |
All measurements in millimetres unless marked (°) for angles.
