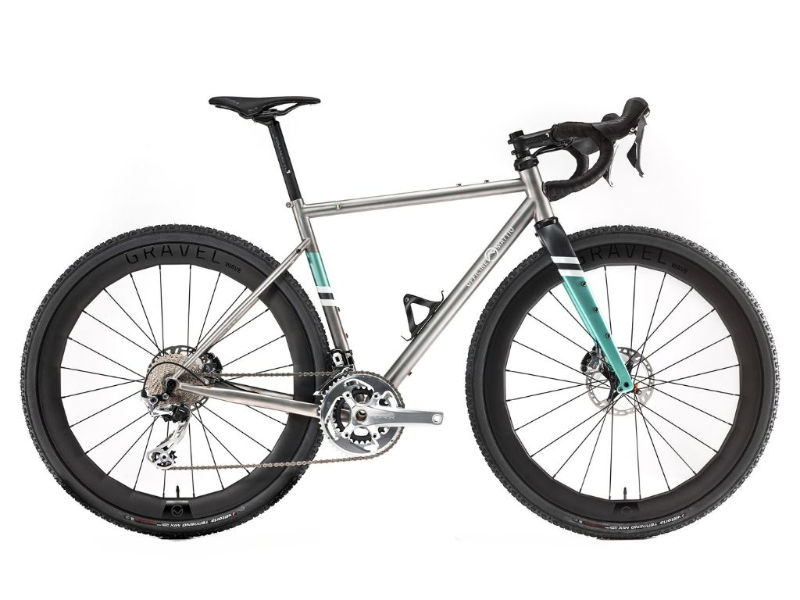

2025 Officine Mattio Santiago AX geometry
Full frame geometry for the 2025 Officine Mattio Santiago AX, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 519 | 344 | 73 | 70 | 90 | 500 | 465 | 740 | 70 | 564 | 430 | 970 |
| S | 529 | 371 | 73 | 70 | 110 | 530 | 480 | 755 | 70 | 588 | 435 | 1010 |
| M | 550 | 380 | 73 | 71.5 | 130 | 550 | 510 | 776 | 70 | 595 | 435 | 1018 |
| L | 576 | 389 | 72.5 | 72.5 | 150 | 570 | 530 | 800 | 70 | 602 | 435 | 1024 |
| XL | 599 | 400 | 72.5 | 72.5 | 175 | 590 | 550 | 821 | 70 | 621 | 435 | 1044 |
All measurements in millimetres unless marked (°) for angles.
