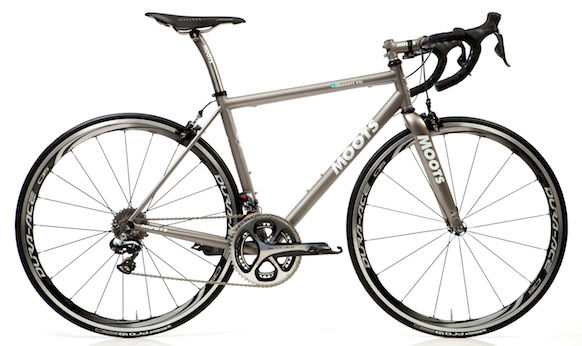

2015 Moots Vamoots RSL geometry

Name: 2015 Moots Vamoots RSL
Brand: Moots

Full frame geometry for the 2015 Moots Vamoots RSL, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Head tube (mm)	Top tube (mm)	Seat tube (mm)	Standover (mm)	BB drop (mm)	Chainstay (mm)	Fork rake (mm)
48	535	369	74.8	72.5	100	515	450	724	74	405	50
50	541	375	74.5	72.8	105	525	460	732	74	405	50
52	552	380	74.3	73	115	535	470	742	73	405	45
54	561	385	74	73.3	125	545	480	752	72	405	45
55	571	387	73.5	73.5	135	555	490	762	72	407	45
56	581	391	73.3	73.5	145	565	500	772	72	407	45
58	597	394	73	73.8	160	575	515	785	71	410	40
60	611	399	73	74	175	585	530	803	70	410	40
62	629	398	72.5	74.3	195	595	550	820	68	415	40

All measurements in millimetres unless marked (°) for angles.
