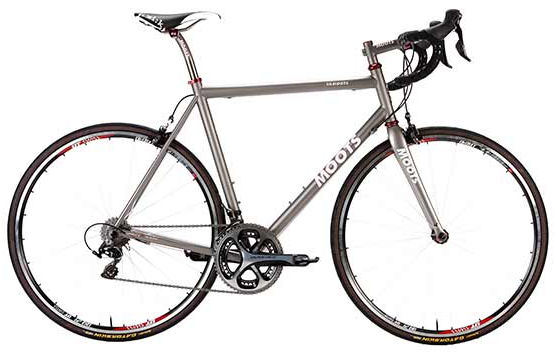

2015 Moots Vamoots MK I geometry

Name: 2015 Moots Vamoots MK I
Brand: Moots

Full frame geometry for the 2015 Moots Vamoots MK I, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Head tube (mm)	Top tube (mm)	Seat tube (mm)	Standover (mm)	BB drop (mm)	Chainstay (mm)	Fork rake (mm)
48	542	362	74.8	71.5	105	510	480	732	80	410	50
50	549	368	74.5	72	110	520	500	744	80	410	50
52	557	373	74.3	72	120	530	520	759	78	410	50
54	577	375	74	72.3	140	540	540	780	78	415	50
55	586	377	73.5	72.5	150	550	550	790	76	415	50
56	597	381	73.3	72.8	160	560	560	800	76	415	50
58	606	385	73	72.8	170	570	580	815	76	420	50
60	623	385	72.5	73	190	580	600	836	72	420	45
62	642	389	72.5	73	210	590	620	853	72	420	45

All measurements in millimetres unless marked (°) for angles.
