2015 Moots Vamoots DR geometry

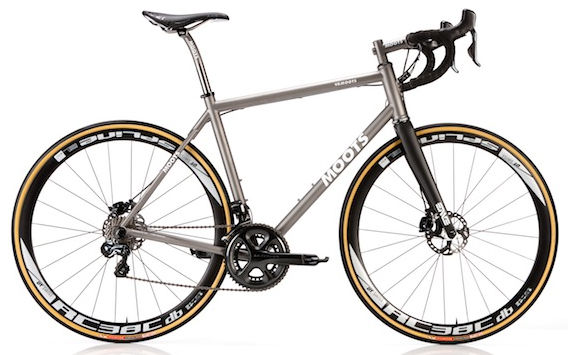

Name: 2015 Moots Vamoots DR
Brand: Moots

Full frame geometry for the 2015 Moots Vamoots DR, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Head tube (mm)	Top tube (mm)	Seat tube (mm)	Standover (mm)	BB drop (mm)	Chainstay (mm)	Fork rake (mm)
48	543	367	74.8	71.5	120	515	450	726	76	415	43
50	545	374	74.5	72	120	525	470	737	76	415	43
52	554	379	74.3	72	130	535	485	754	75	415	43
54	575	380	74	72.3	150	545	500	770	75	415	43
55	585	383	73.5	72.8	160	555	510	780	75	415	43
56	595	387	73.3	73	170	565	520	787	75	415	43
58	603	392	73	73	180	575	535	800	73	420	43
60	621	390	72.5	73.3	200	585	550	818	71	420	43
62	639	395	72.5	73.3	220	595	570	836	70	420	43

All measurements in millimetres unless marked (°) for angles.
