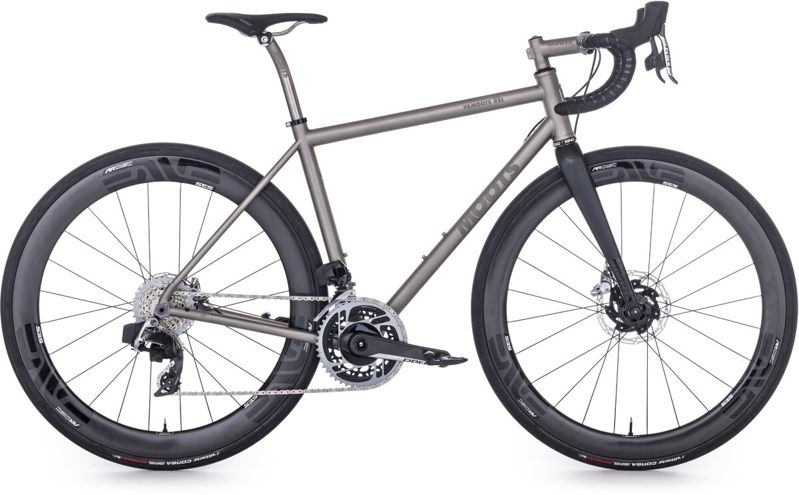

2020 Moots Vamoots Disc RSL geometry
Full frame geometry for the 2020 Moots Vamoots Disc RSL, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|
| 48 | 538 | 367 | 74.8 | 72.5 | 110 | 515 | 450 | 50 |
| 50 | 548 | 372 | 74.5 | 72.8 | 120 | 525 | 460 | 50 |
| 52 | 558 | 377 | 74.3 | 73 | 130 | 535 | 470 | 50 |
| 54 | 569 | 381 | 74 | 73.3 | 140 | 545 | 480 | 43 |
| 55 | 580 | 386 | 73.8 | 73.5 | 150 | 555 | 490 | 43 |
| 56 | 589 | 390 | 73.5 | 73.5 | 160 | 565 | 500 | 43 |
| 58 | 599 | 392 | 73 | 73.8 | 170 | 575 | 515 | 43 |
| 60 | 618 | 397 | 73 | 74 | 190 | 585 | 530 | 43 |
| 62 | 636 | 396 | 72.5 | 74.3 | 210 | 595 | 550 | 43 |
All measurements in millimetres unless marked (°) for angles.
