2015 Moots Vamoots CR geometry

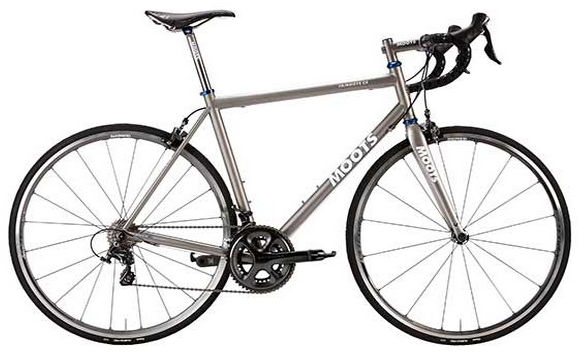

Name: 2015 Moots Vamoots CR
Brand: Moots

Full frame geometry for the 2015 Moots Vamoots CR, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Head tube (mm)	Top tube (mm)	Seat tube (mm)	Standover (mm)	BB drop (mm)	Chainstay (mm)	Fork rake (mm)
48	535	369	74.8	72.5	100	515	450	721	74	405	50
50	541	375	74.5	72.8	105	525	460	734	74	405	50
52	552	380	74.3	73	115	535	470	747	73	405	45
54	566	383	74	73.3	130	545	480	762	72	405	45
55	576	385	73.5	73.5	140	555	490	770	72	407	45
56	586	390	73.3	73.5	150	565	500	780	72	407	45
58	601	392	73	73.8	165	575	515	795	71	410	40
60	616	398	73	74	180	585	530	810	70	410	40
62	634	397	72.5	74.3	200	595	550	831	68	415	40

All measurements in millimetres unless marked (°) for angles.
