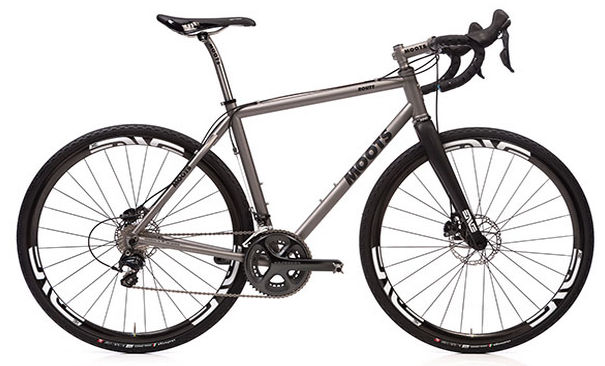

2015 Moots Routt geometry
Full frame geometry for the 2015 Moots Routt, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 50 | 562 | 365 | 75 | 70.8 | 120 | 515 | 460 | 762 | 71 | 423 | 47 |
| 52 | 582 | 361 | 74.3 | 71 | 140 | 525 | 480 | 787 | 71 | 423 | 47 |
| 54 | 591 | 371 | 74 | 71.5 | 150 | 540 | 510 | 803 | 69 | 423 | 47 |
| 55 | 601 | 373 | 73.5 | 71.5 | 160 | 550 | 520 | 810 | 69 | 423 | 47 |
| 56 | 612 | 377 | 73.3 | 72 | 170 | 560 | 530 | 823 | 69 | 423 | 47 |
| 58 | 621 | 391 | 73 | 72 | 180 | 580 | 550 | 833 | 69 | 423 | 47 |
| 60 | 642 | 397 | 72.8 | 72.5 | 200 | 595 | 570 | 856 | 68 | 423 | 47 |
All measurements in millimetres unless marked (°) for angles.
