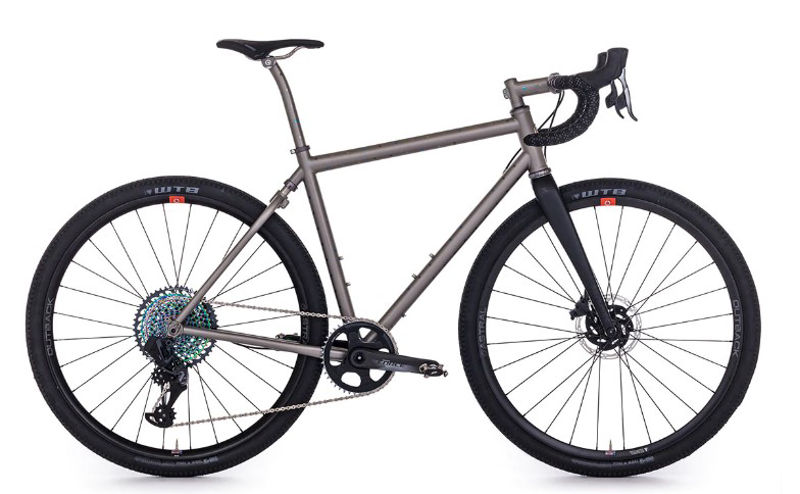

2021 Moots Routt RSL geometry
Full frame geometry for the 2021 Moots Routt RSL, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 50 | 563 | 366 | 75 | 71 | 120 | 520 | 460 | 71 | 1009 |
| 52 | 572 | 366 | 74.3 | 71 | 130 | 530 | 480 | 71 | 1012 |
| 54 | 581 | 376 | 74 | 71.5 | 140 | 545 | 510 | 69 | 1021 |
| 55 | 591 | 379 | 73.5 | 71.5 | 150 | 555 | 520 | 69 | 1027 |
| 56 | 602 | 383 | 73.3 | 72 | 160 | 565 | 530 | 69 | 1030 |
| 58 | 612 | 402 | 73 | 72 | 170 | 590 | 550 | 69 | 1052 |
| 60 | 631 | 409 | 72.8 | 72.3 | 190 | 605 | 570 | 68 | 1063 |
All measurements in millimetres unless marked (°) for angles.
