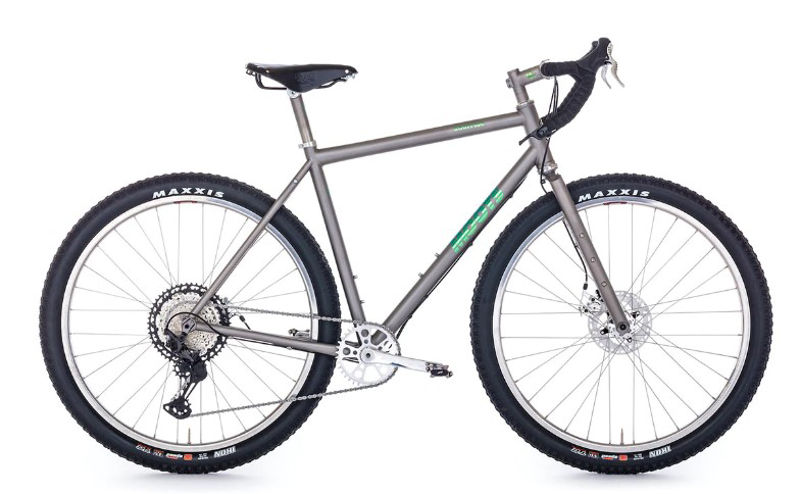

2021 Moots Routt ESC geometry
Full frame geometry for the 2021 Moots Routt ESC, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Top tube (mm) | Seat tube (mm) | BB drop (mm) |
|---|---|---|---|---|---|---|---|
| S | 602 | 358 | 74.3 | 70 | 530 | 520 | 72 |
| M | 620 | 378 | 74 | 70 | 560 | 540 | 72 |
| L | 650 | 396 | 73.5 | 70.5 | 590 | 570 | 70 |
| XL | 678 | 411 | 73 | 71 | 620 | 600 | 68 |
All measurements in millimetres unless marked (°) for angles.
