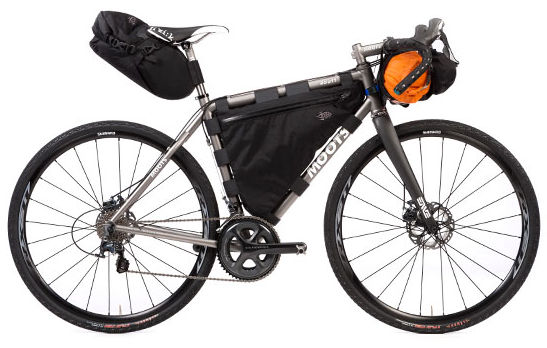

2015 Moots Routt 45 MK I geometry

Name: 2015 Moots Routt 45 MK I
Brand: Moots

Full frame geometry for the 2015 Moots Routt 45 MK I, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Head tube (mm)	Top tube (mm)	Seat tube (mm)	Standover (mm)	BB drop (mm)	Chainstay (mm)	Fork rake (mm)
50	562	365	75	70.8	120	515	460	762	71	423	47
52	582	361	74.3	71	140	525	480	787	71	423	47
54	591	371	74	71.5	150	540	510	803	69	423	47
55	601	373	73.5	71.5	160	550	520	810	69	423	47
56	612	377	73.3	72	170	560	530	823	69	423	47
58	621	391	73	72	180	580	550	833	69	423	47
60	642	397	72.8	72.5	200	595	570	856	68	423	47

All measurements in millimetres unless marked (°) for angles.
