2015 Moots Psychlo X RSL geometry

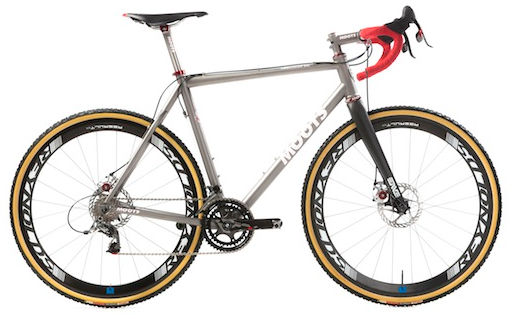

Name: 2015 Moots Psychlo X RSL
Brand: Moots

Full frame geometry for the 2015 Moots Psychlo X RSL, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Head tube (mm)	Top tube (mm)	Seat tube (mm)	Standover (mm)	BB drop (mm)	Chainstay (mm)	Fork rake (mm)
50	547	373	74.5	71.5	110	525	480	775	63	423	47
52	558	376	74	72	120	535	520	800	63	423	47
54	568	383	73.5	72.5	130	550	540	813	61	423	47
55	577	390	73.5	72.5	140	560	550	823	61	423	47
56	587	392	73	72.5	150	570	560	833	61	423	47
58	598	403	73	73	160	585	580	848	61	423	47
60	616	406	72.5	73	180	600	600	866	60	423	47

All measurements in millimetres unless marked (°) for angles.
