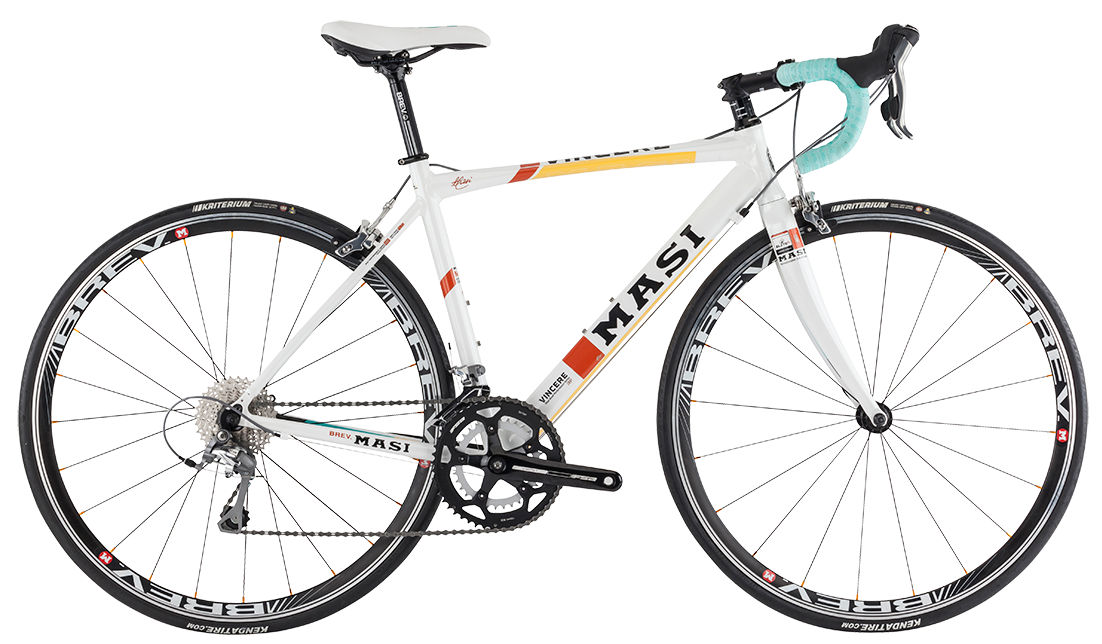

2015 Masi Vincere Bellissima geometry
Full frame geometry for the 2015 Masi Vincere Bellissima, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 47 | 498 | 372 | 75 | 71 | 100 | 505 | 470 | 722 | 70 | 567 | 408 | 965 | 50 |
| 49 | 501 | 381 | 74.5 | 72 | 100 | 520 | 490 | 722 | 70 | 575 | 408 | 973 | 50 |
| 51 | 533 | 377 | 74 | 72.5 | 130 | 530 | 510 | 743 | 70 | 574 | 408 | 972 | 45 |
| 53 | 549 | 377 | 73.5 | 73 | 145 | 540 | 530 | 760 | 70 | 574 | 412 | 976 | 45 |
| 56 | 579 | 383 | 73 | 73.5 | 175 | 560 | 560 | 790 | 68 | 581 | 412 | 983 | 40 |
| 58 | 600 | 397 | 73 | 74 | 195 | 580 | 580 | 812 | 68 | 595 | 418 | 1004 | 40 |
| 60 | 614 | 401 | 72.5 | 74 | 210 | 595 | 600 | 826 | 68 | 604 | 418 | 1013 | 40 |
All measurements in millimetres unless marked (°) for angles.
