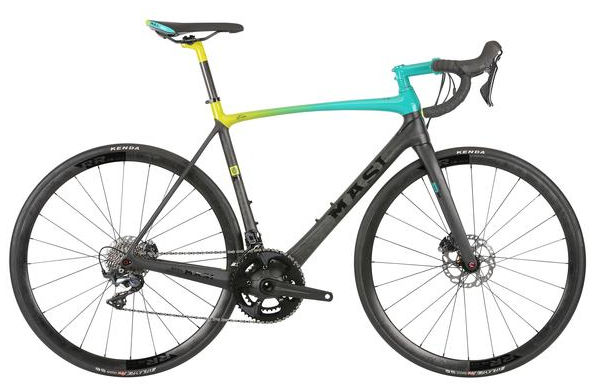

2019 Masi Evoluzione MK II geometry
Full frame geometry for the 2019 Masi Evoluzione MK II, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 47 | 502 | 376 | 74 | 72 | 100 | 520 | 470 | 712 | 68 | 964 | 45 |
| 51 | 523 | 380 | 74 | 72.5 | 120 | 530 | 510 | 744 | 68 | 970 | 45 |
| 54 | 543 | 389 | 74 | 73 | 140 | 545 | 540 | 764 | 68 | 981 | 45 |
| 56 | 565 | 398 | 73.5 | 73.5 | 160 | 565 | 560 | 797 | 68 | 989 | 43 |
| 58 | 582 | 413 | 73.5 | 73 | 180 | 585 | 580 | 817 | 68 | 1014 | 43 |
| 61 | 601 | 422 | 73.5 | 73 | 200 | 600 | 610 | 842 | 68 | 1029 | 43 |
All measurements in millimetres unless marked (°) for angles.
