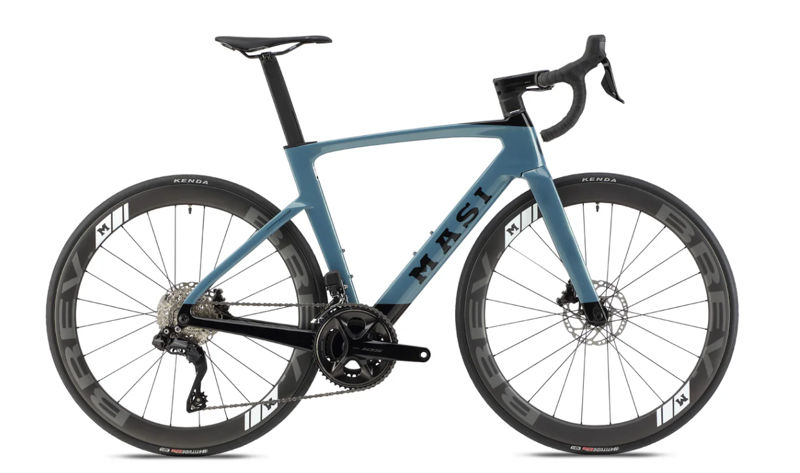

2024 Masi Evoluzione 1 geometry
Full frame geometry for the 2024 Masi Evoluzione 1, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 514 | 373 | 75 | 71.5 | 105 | 511 | 460 | 750 | 72 | 406 | 45 |
| S | 527 | 378 | 74 | 72.5 | 115 | 529 | 480 | 768 | 72 | 406 | 45 |
| M | 548 | 384 | 73 | 73 | 135 | 541 | 495 | 786 | 72 | 406 | 45 |
| L | 568 | 392 | 73.5 | 73.5 | 155 | 560 | 520 | 808 | 72 | 410 | 45 |
| XL | 592 | 404 | 73 | 73.5 | 180 | 585 | 540 | 829 | 72 | 410 | 45 |
All measurements in millimetres unless marked (°) for angles.
