2025 Masi · RD

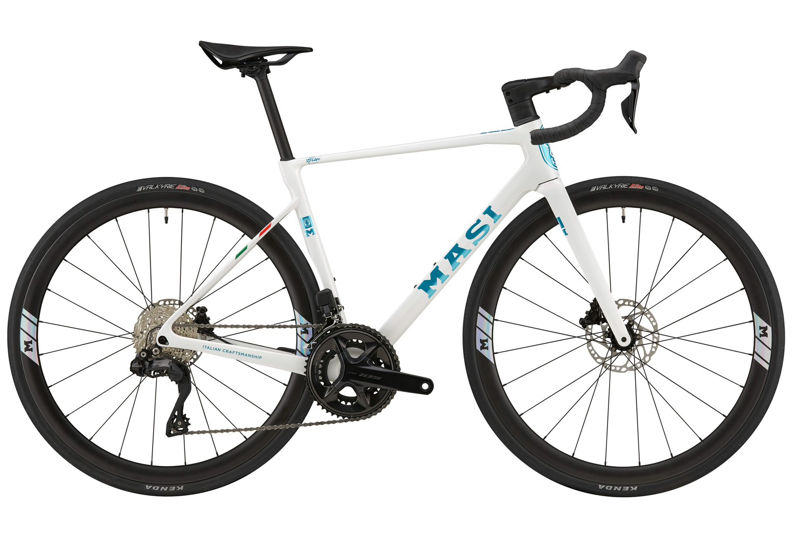

2025 Masi Gran Corsa geometry
Full frame geometry for the 2025 Masi Gran Corsa, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 520 | 363 | 73.5 | 71.2 | 120 | 517 | 452 | 73 | 405 | 974 | 57 |
| S | 530 | 375 | 73 | 71.2 | 130 | 537 | 472 | 73 | 405 | 976 | 45 |
| M | 544 | 385 | 73 | 72.5 | 140 | 551 | 493 | 73 | 405 | 979 | 45 |
| L | 563 | 398 | 73 | 72.5 | 160 | 570 | 513 | 73 | 405 | 998 | 45 |
| XL | 585 | 414 | 73 | 72.5 | 183 | 593 | 533 | 73 | 405 | 1021 | 45 |
All measurements in millimetres unless marked (°) for angles.
