2026 Masi · G

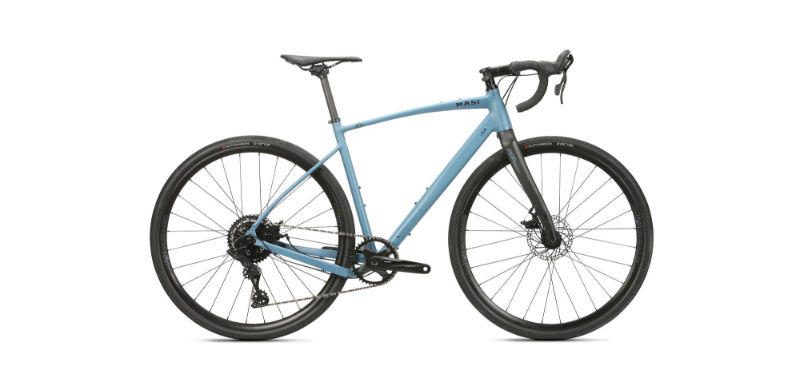

2026 Masi Brunello geometry
Full frame geometry for the 2026 Masi Brunello, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 551 | 388 | 74.5 | 71.8 | 114.5 | 541 | 440 | 733 | 74 | 425 | 1011.1 | 45 |
| S | 559 | 394 | 74.5 | 71.8 | 123 | 549 | 470 | 762 | 74 | 425 | 1019 | 45 |
| M | 580 | 399 | 74 | 72.2 | 144 | 564 | 500 | 788 | 74 | 425 | 1026.4 | 45 |
| L | 594 | 401 | 73.7 | 72.2 | 158.5 | 574 | 520 | 807 | 74 | 425 | 1033.2 | 45 |
| XL | 610 | 403 | 73.7 | 72.2 | 175 | 581 | 540 | 826 | 74 | 425 | 1040.2 | 45 |
| XXL | 629 | 406 | 73 | 72.2 | 195.5 | 589 | 570 | 851 | 74 | 425 | 1049.2 | 45 |
All measurements in millimetres unless marked (°) for angles.
