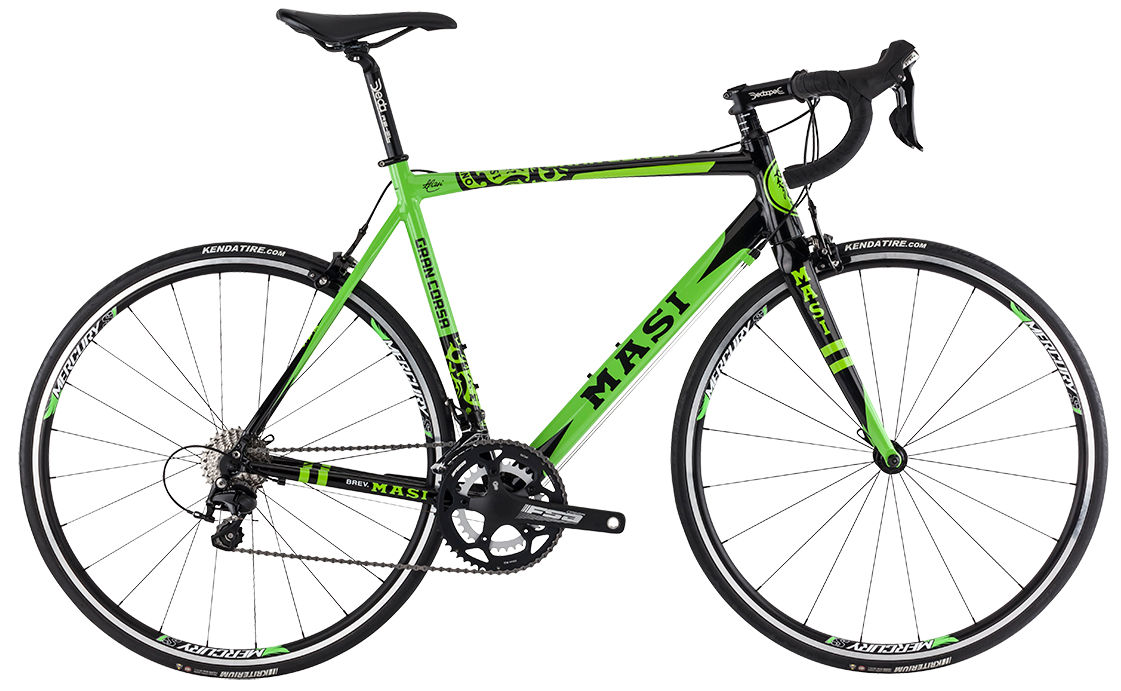

2015 Masi Gran Corsa MK I geometry
Full frame geometry for the 2015 Masi Gran Corsa MK I, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 47 | 501 | 376 | 74 | 72 | 100 | 520 | 470 | 712 | 68 | 565 | 410 | 965 | 45 |
| 50 | 521 | 381 | 74 | 72.5 | 120 | 530 | 500 | 744 | 68 | 575 | 410 | 975 | 45 |
| 53 | 542 | 390 | 74 | 73 | 140 | 545 | 530 | 764 | 68 | 586 | 410 | 986 | 45 |
| 56 | 563 | 398 | 73.5 | 73.5 | 160 | 565 | 560 | 797 | 68 | 596 | 410 | 996 | 45 |
| 59 | 580 | 413 | 73.5 | 73 | 180 | 585 | 590 | 817 | 68 | 620 | 410 | 1021 | 45 |
| 62 | 599 | 417 | 73.5 | 73 | 200 | 595 | 620 | 842 | 68 | 630 | 410 | 1031 | 45 |
All measurements in millimetres unless marked (°) for angles.
