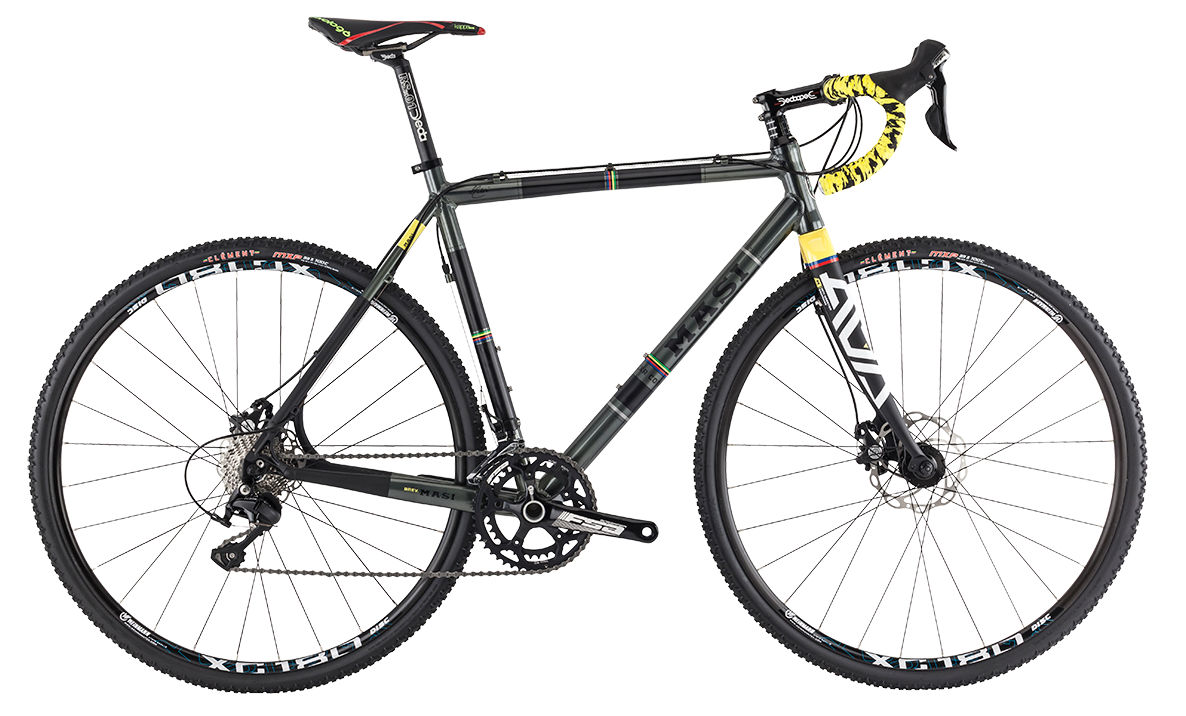

2015 Masi CXR MK I geometry
Full frame geometry for the 2015 Masi CXR MK I, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 49 | 515 | 367 | 74 | 71 | 95 | 515 | 490 | 753 | 65 | 568 | 425 | 984 | 45 |
| 52 | 528 | 379 | 73.5 | 72 | 105 | 535 | 520 | 772 | 65 | 579 | 425 | 995 | 45 |
| 55 | 557 | 380 | 73 | 72 | 135 | 550 | 550 | 800 | 65 | 590 | 425 | 1006 | 45 |
| 57 | 580 | 393 | 73 | 72 | 160 | 570 | 570 | 822 | 65 | 609 | 425 | 1026 | 45 |
| 60 | 604 | 400 | 72.5 | 72 | 185 | 590 | 600 | 847 | 65 | 624 | 425 | 1041 | 45 |
All measurements in millimetres unless marked (°) for angles.
