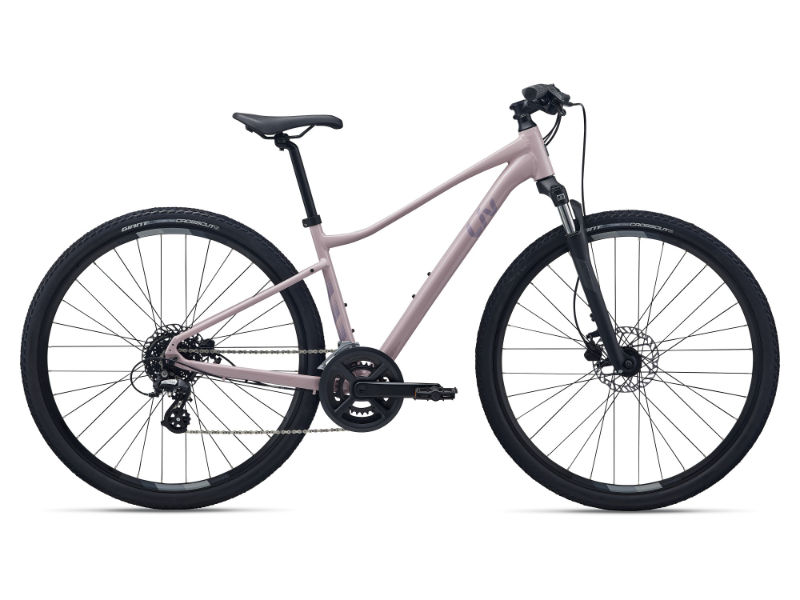

2026 Liv Rove geometry
Full frame geometry for the 2026 Liv Rove, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 601 | 378 | 74 | 70.5 | 110 | 550 | 380 | 679 | 62 | 450 | 1059 | 42 | 85.1 |
| S | 611 | 389 | 73.5 | 70.5 | 120 | 570 | 420 | 691 | 62 | 450 | 1074 | 42 | 85.1 |
| M | 625 | 399 | 73 | 70.5 | 135 | 590 | 460 | 708 | 62 | 450 | 1089 | 42 | 85.1 |
| L | 639 | 415 | 73 | 70.5 | 150 | 610 | 500 | 738 | 62 | 450 | 1109 | 42 | 85.1 |
All measurements in millimetres unless marked (°) for angles.
