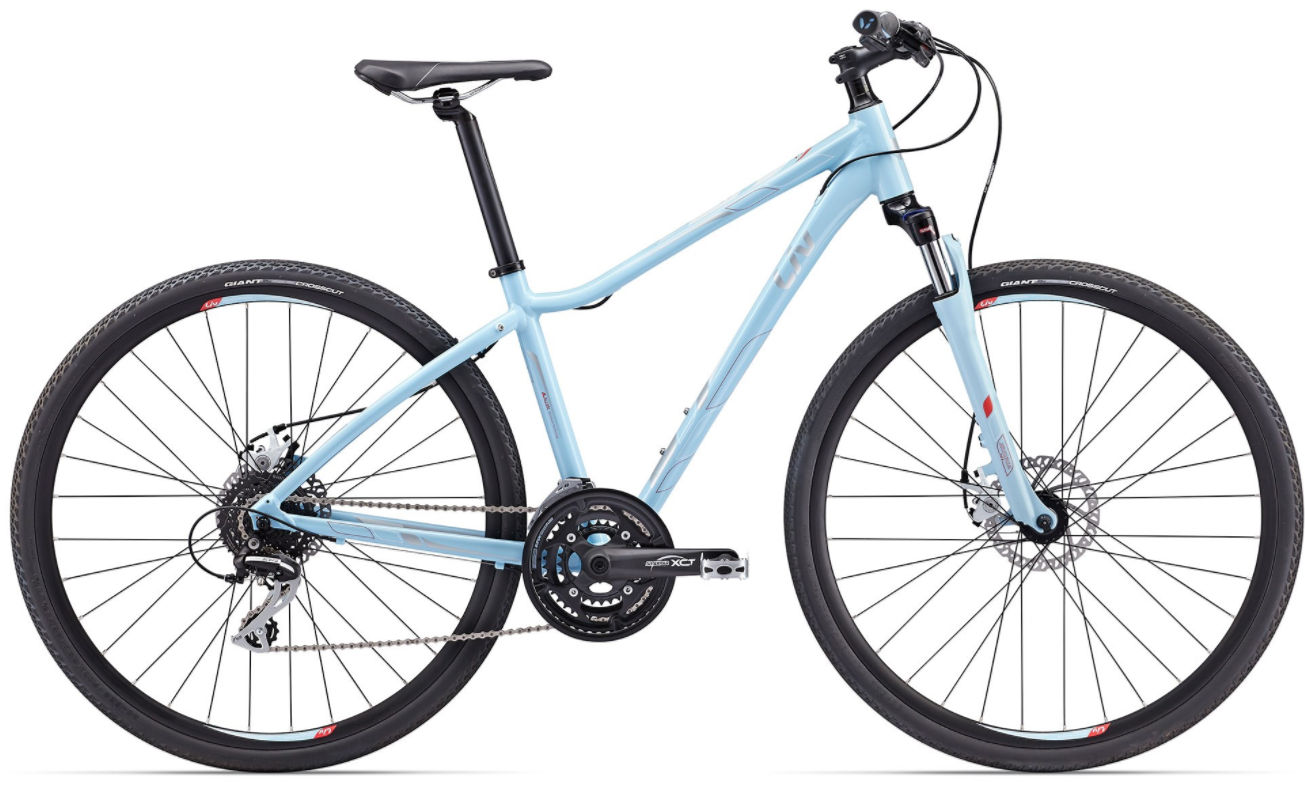

2016 Liv Rove geometry
Full frame geometry for the 2016 Liv Rove, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| XS | 601 | 358 | 74 | 71 | 115 | 530 | 622 | 588 | 455 | 1043 |
| S | 611 | 369 | 73.5 | 71 | 125 | 550 | 635 | 602 | 455 | 1057 |
| M | 625 | 379 | 73 | 71 | 140 | 570 | 663 | 617 | 455 | 1072 |
| L | 644 | 393 | 73 | 71 | 160 | 590 | 691 | 638 | 455 | 1093 |
All measurements in millimetres unless marked (°) for angles.
