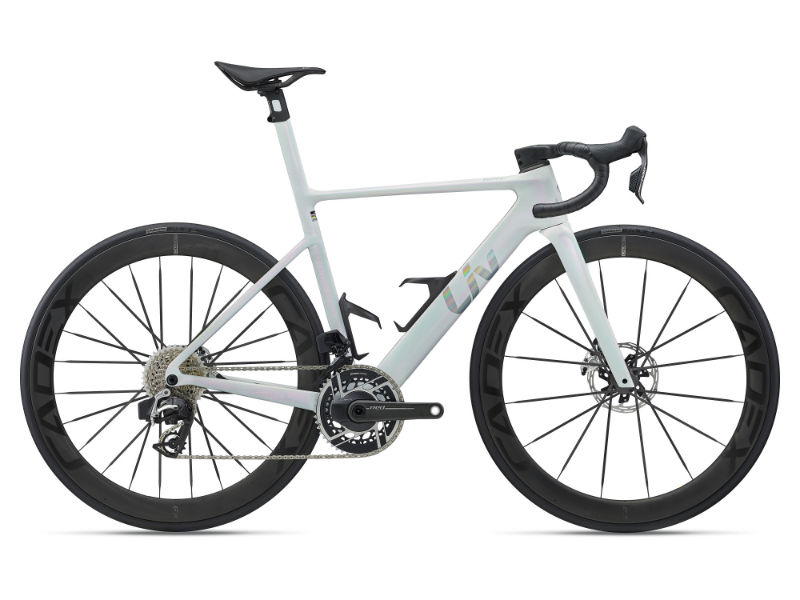

2027 Liv EnviLiv Advanced SL geometry
Full frame geometry for the 2027 Liv EnviLiv Advanced SL, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 511.8 | 372.9 | 75 | 71 | 115 | 514.8 | 680 | 732.6 | 66.8 | 405 | 974.7 | 49 | 66.8 |
| S | 527 | 377.8 | 74.5 | 72 | 130 | 526.2 | 710 | 760.8 | 60.4 | 405 | 977 | 49 | 60.4 |
| M | 547.8 | 382.9 | 74 | 72.5 | 150 | 541.2 | 740 | 786.9 | 57.2 | 405 | 984.1 | 49 | 57.2 |
| L | 566.9 | 392.1 | 73.5 | 72.5 | 170 | 560.6 | 770 | 814 | 57.2 | 405 | 999.3 | 49 | 57.2 |
All measurements in millimetres unless marked (°) for angles.
