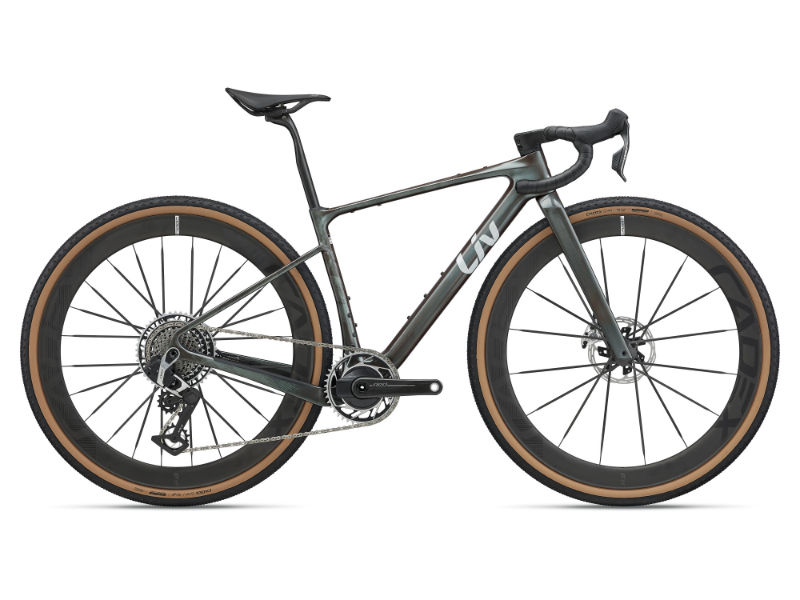

2027 Liv Devote Advanced SL geometry
Full frame geometry for the 2027 Liv Devote Advanced SL, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 525 | 387 | 75 | 70.5 | 90 | 528 | 390 | 663 | 80 | 433 | 1024 | 50 | 75 |
| S | 537 | 389 | 74.5 | 71 | 100 | 538 | 420 | 714 | 80 | 433 | 1025 | 50 | 72 |
| M | 557 | 394 | 74.5 | 71.5 | 120 | 548 | 465 | 752 | 80 | 433 | 1031 | 50 | 69 |
| L | 569 | 399 | 74 | 72 | 130 | 562 | 500 | 801 | 80 | 433 | 1036 | 50 | 65 |
All measurements in millimetres unless marked (°) for angles.
