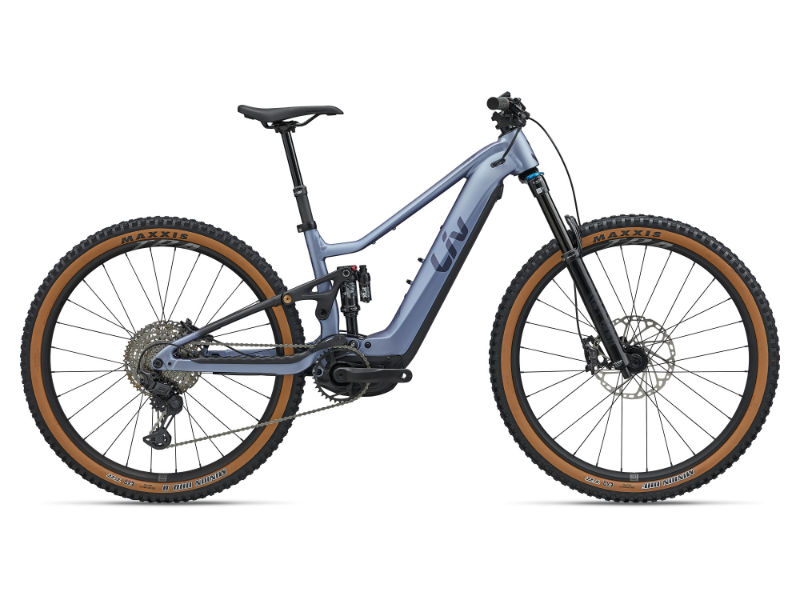

2027 Liv Embolden E+ geometry
Full frame geometry for the 2027 Liv Embolden E+, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|
| S | 619 | 426 | 76.5 | 64.5 | 105 | 575 | 710 | 468 | 1226 |
| XS | 619 | 417 | 77.5 | 64.5 | 105 | 555 | 689 | 468 | 1217 |
| M | 628 | 444 | 76.5 | 64.5 | 115 | 595 | 726 | 468 | 1248 |
| L | 637 | 462 | 76.5 | 64.5 | 125 | 615 | 736 | 468 | 1270 |
All measurements in millimetres unless marked (°) for angles.
