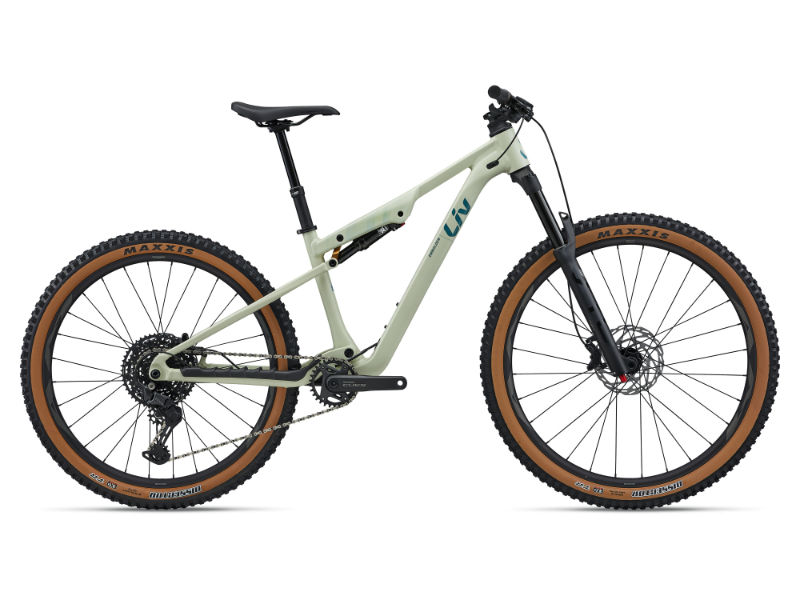

2026 Liv Embolden geometry
Full frame geometry for the 2026 Liv Embolden, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 609 | 407 | 77 | 65 | 90 | 548 | 380 | 758 | 25 | 440 | 1158 | 44 | 129 |
| M | 618 | 436 | 77 | 65 | 105 | 584 | 420 | 750 | 40 | 442 | 1194 | 44 | 129 |
| S | 618 | 422 | 77 | 65 | 100 | 564 | 390 | 757 | 25 | 440 | 1176 | 44 | 129 |
| L | 627 | 455 | 77 | 65 | 115 | 605 | 450 | 745 | 40 | 442 | 1217 | 44 | 129 |
All measurements in millimetres unless marked (°) for angles.
