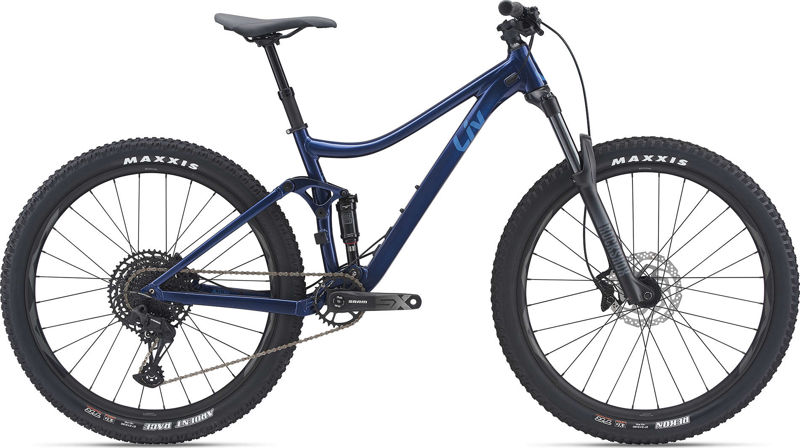

2021 Liv EMBOLDEN geometry
Full frame geometry for the 2021 Liv EMBOLDEN, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 560 | 404 | 74 | 67.5 | 95 | 565 | 380 | 690 | 20 | 435 | 1109 | 43 | 103.6 |
| S | 565 | 418 | 74 | 67.5 | 100 | 580 | 406 | 705 | 20 | 435 | 1125 | 43 | 103.6 |
| M | 574 | 430 | 74 | 67.5 | 110 | 595 | 445 | 733 | 20 | 435 | 1141 | 43 | 103.6 |
| L | 583 | 442 | 74 | 67.5 | 120 | 610 | 490 | 759 | 20 | 435 | 1157 | 43 | 103.6 |
All measurements in millimetres unless marked (°) for angles.
