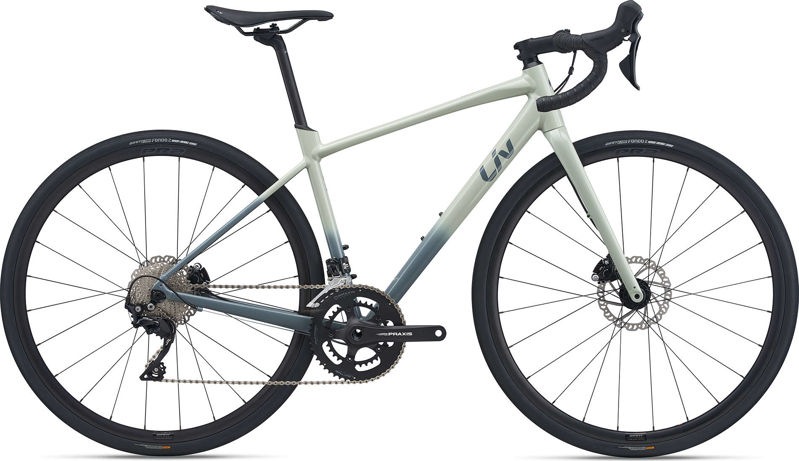

2022 Liv Avail AR geometry
Full frame geometry for the 2022 Liv Avail AR, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS | 522 | 362 | 75 | 70 | 103 | 502 | 375 | 653 | 80 | 422 | 994 | 53 | 72.8 |
| XS | 538 | 366 | 74.5 | 70.5 | 118 | 515 | 410 | 681 | 80 | 422 | 999 | 53 | 69.5 |
| S | 561 | 369 | 74.5 | 71.5 | 138 | 525 | 445 | 709 | 80 | 422 | 1001 | 53 | 62.9 |
| M | 582 | 373 | 74 | 72 | 158 | 540 | 480 | 736 | 80 | 422 | 1006 | 53 | 59.6 |
| L | 601 | 383 | 74 | 72 | 178 | 555 | 515 | 766 | 80 | 422 | 1022 | 53 | 59.6 |
All measurements in millimetres unless marked (°) for angles.
