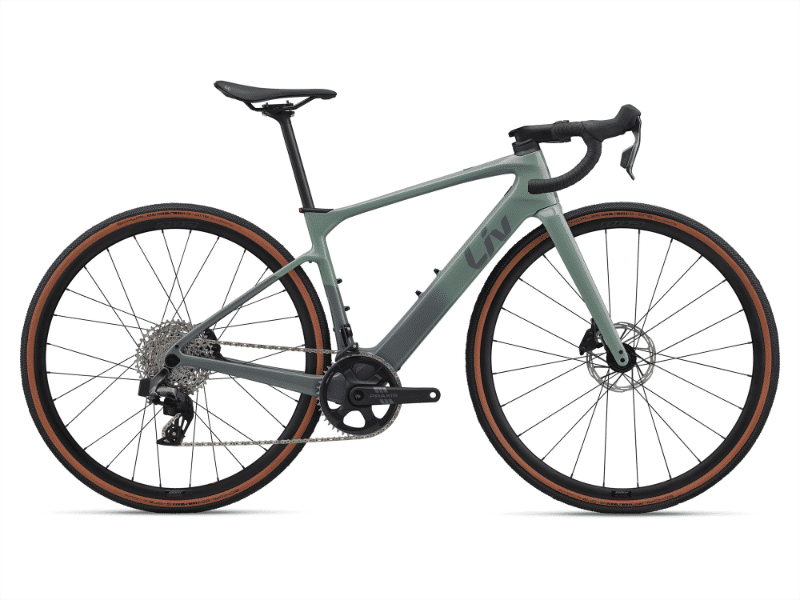

2026 Liv Avail Advanced E+ Elite geometry
Full frame geometry for the 2026 Liv Avail Advanced E+ Elite, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 528.9 | 368 | 74.5 | 70.5 | 120 | 515 | 400 | 677 | 80 | 420 | 993 | 50 | 72 |
| S | 545 | 373.6 | 74.5 | 71 | 135 | 525 | 435 | 708 | 80 | 420 | 999.2 | 50 | 68.3 |
| M | 562.8 | 378.4 | 74 | 72 | 155 | 540 | 470 | 743 | 80 | 420 | 1003 | 50 | 61.8 |
| L | 582.4 | 382.4 | 73.5 | 72 | 175 | 555 | 505 | 782.4 | 75 | 420 | 1013.2 | 50 | 61.8 |
All measurements in millimetres unless marked (°) for angles.
