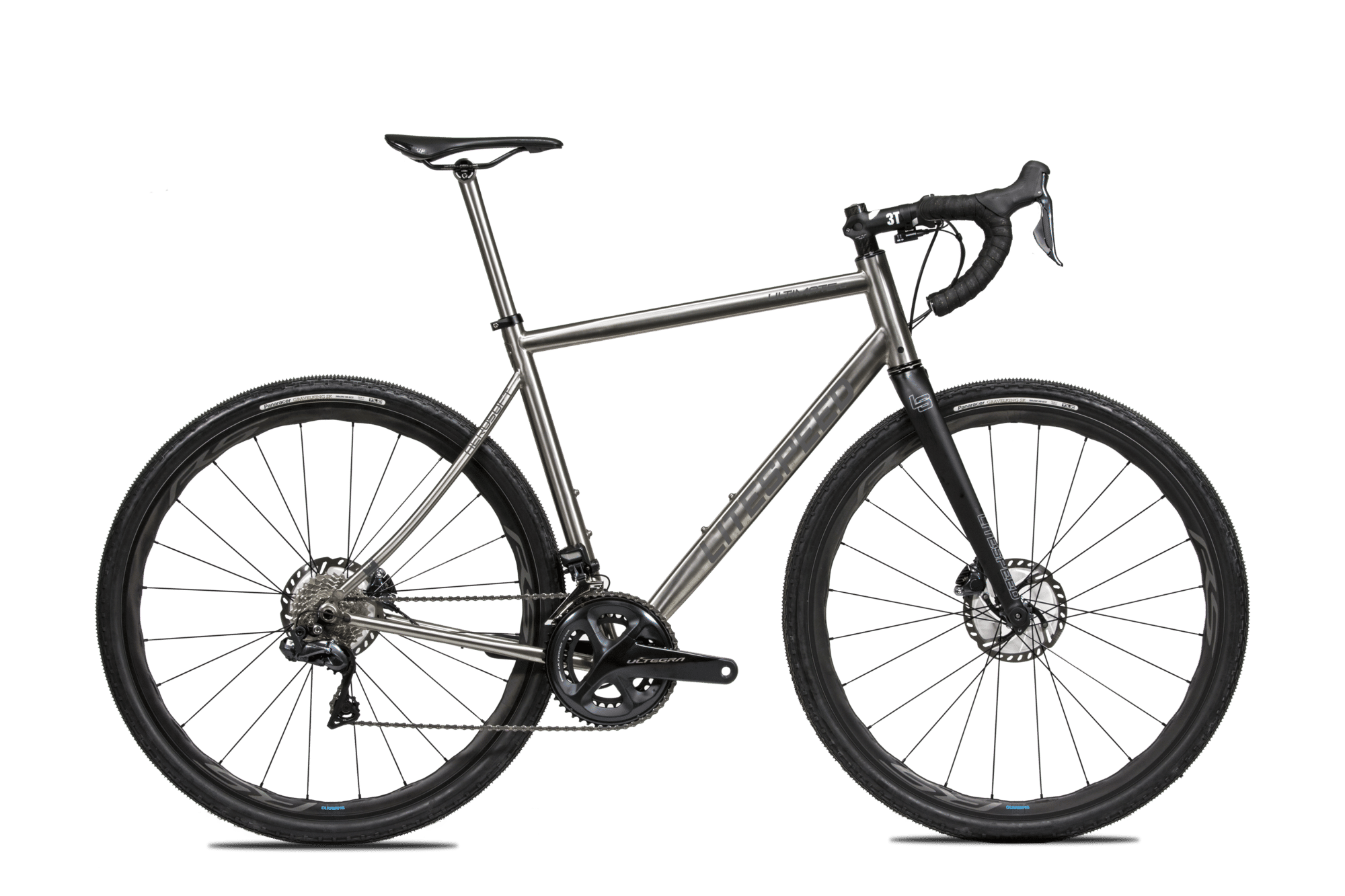

2019 Litespeed Ultimate Gravel geometry
Full frame geometry for the 2019 Litespeed Ultimate Gravel, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 550 | 370 | 74 | 71.5 | 106 | 528 | 475 | 755 | 74 | 587 | 425 | 1001 | 50 |
| M | 565 | 375 | 73.5 | 72 | 123 | 542 | 495 | 775 | 71 | 592 | 425 | 1007 | 50 |
| ML | 585 | 385 | 73.5 | 72 | 144 | 558 | 515 | 790 | 71 | 609 | 425 | 1024 | 50 |
| L | 610 | 390 | 73 | 72 | 173 | 577 | 535 | 816 | 68 | 622 | 425 | 1038 | 50 |
| XL | 640 | 395 | 73 | 72 | 205 | 591 | 555 | 844 | 68 | 637 | 425 | 1053 | 50 |
All measurements in millimetres unless marked (°) for angles.
