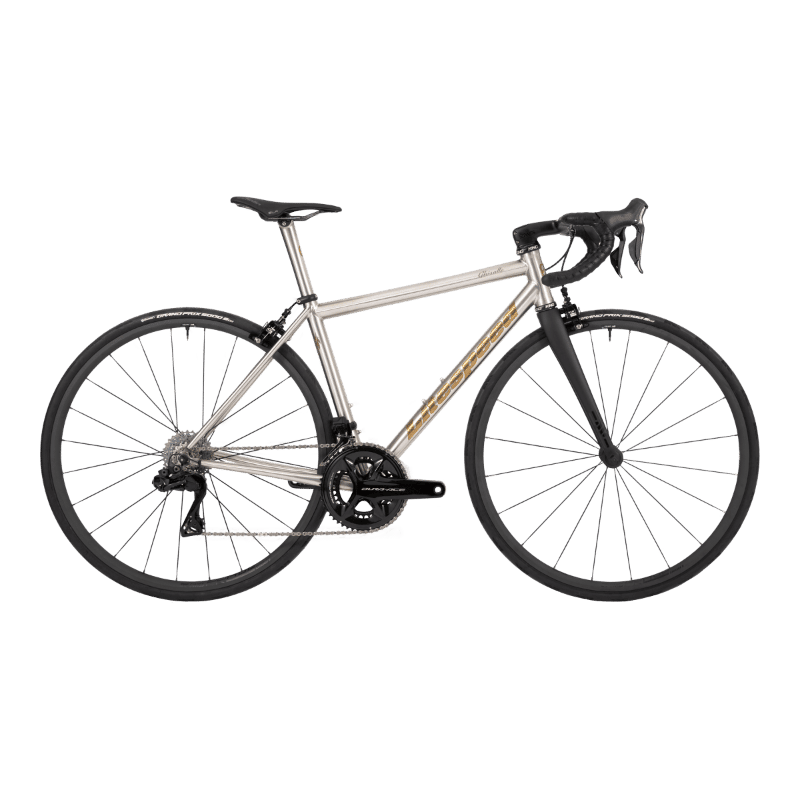

2026 Litespeed Ghisallo geometry
Full frame geometry for the 2026 Litespeed Ghisallo, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 500 | 375 | 71 | 88 | 514 | 400 | 676 | 74 | 579 | 410 | 978 | 50 |
| S | 520 | 380 | 72 | 105 | 529 | 430 | 703 | 74 | 582 | 410 | 981 | 50 |
| M | 540 | 385 | 73 | 124 | 545 | 460 | 731 | 71 | 578 | 410 | 987 | 43 |
| M/L | 560 | 390 | 73 | 145 | 556 | 495 | 761 | 71 | 589 | 410 | 988 | 43 |
| L | 590 | 395 | 73 | 176 | 570 | 530 | 795 | 71 | 603 | 410 | 1002 | 43 |
| XL | 620 | 400 | 73 | 210 | 590 | 570 | 834 | 68 | 618 | 410 | 1018 | 43 |
All measurements in millimetres unless marked (°) for angles.
