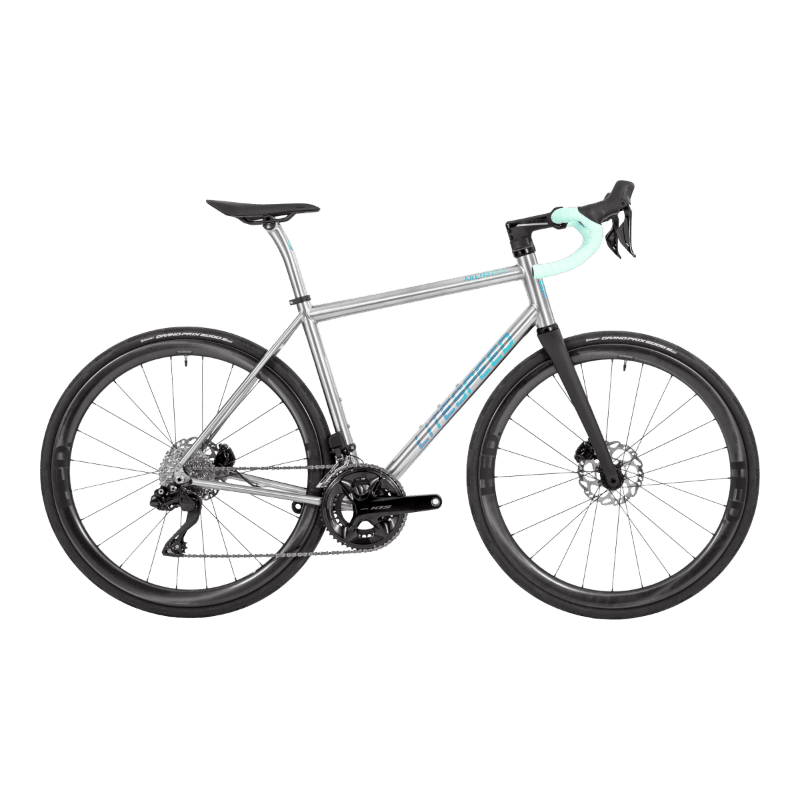

2026 Litespeed Arenberg FI geometry
Full frame geometry for the 2026 Litespeed Arenberg FI, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 520 | 365 | 74.5 | 70 | 106 | 509 | 430 | 695 | 78 | 581 | 420 | 989 | 47 |
| S | 535 | 370 | 74 | 70.5 | 120 | 523 | 450 | 713 | 78 | 587 | 420 | 995 | 47 |
| M | 565 | 375 | 73.5 | 72 | 148 | 542 | 480 | 745 | 76 | 588 | 420 | 996 | 47 |
| ML | 590 | 380 | 73.5 | 72.5 | 172 | 555 | 510 | 772 | 76 | 596 | 420 | 1004 | 47 |
| L | 620 | 385 | 73.3 | 72.5 | 206 | 572 | 540 | 804 | 74 | 611 | 420 | 1020 | 47 |
| XL | 640 | 395 | 73 | 72.5 | 228 | 591 | 570 | 832 | 72 | 627 | 420 | 1037 | 47 |
All measurements in millimetres unless marked (°) for angles.
