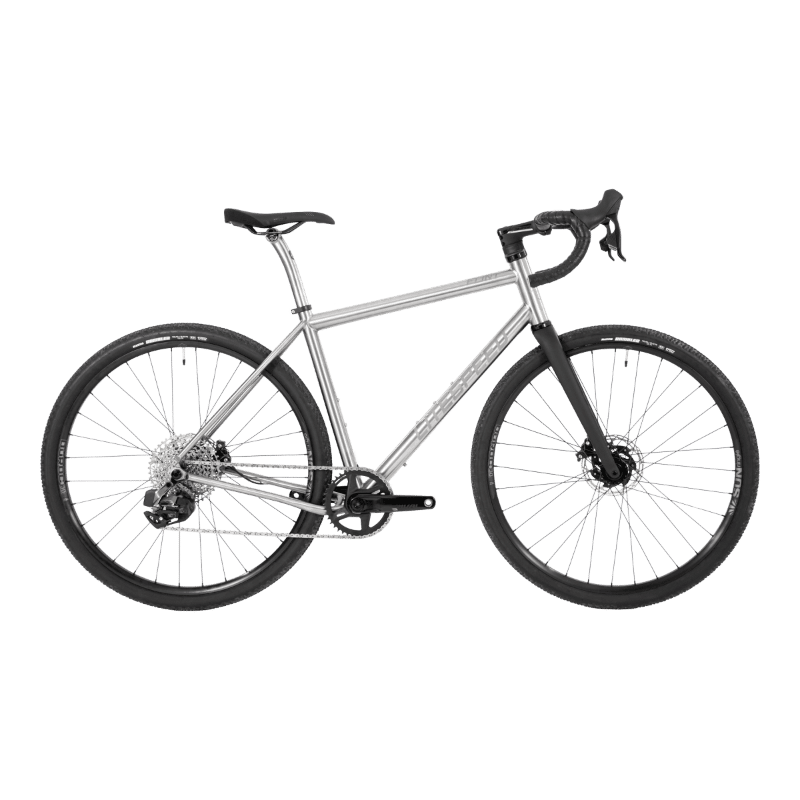

2026 Litespeed Flint FI geometry
Full frame geometry for the 2026 Litespeed Flint FI, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 549 | 355 | 75 | 69 | 92 | 503 | 430 | 714 | 78 | 594 | 437 | 1019 | 50 |
| S | 550 | 370 | 74.5 | 69.5 | 92 | 523 | 445 | 730 | 78 | 605 | 437 | 1030 | 50 |
| M | 575 | 380 | 74 | 70 | 117 | 545 | 470 | 758 | 76 | 620 | 437 | 1045 | 50 |
| M/L | 600 | 390 | 73.5 | 70.5 | 142 | 568 | 495 | 784 | 76 | 633 | 437 | 1059 | 50 |
| L | 625 | 395 | 73.5 | 71 | 168 | 580 | 520 | 812 | 74 | 642 | 437 | 1068 | 50 |
| XL | 650 | 400 | 73 | 71.5 | 192 | 600 | 550 | 838 | 74 | 649 | 437 | 1075 | 50 |
All measurements in millimetres unless marked (°) for angles.
