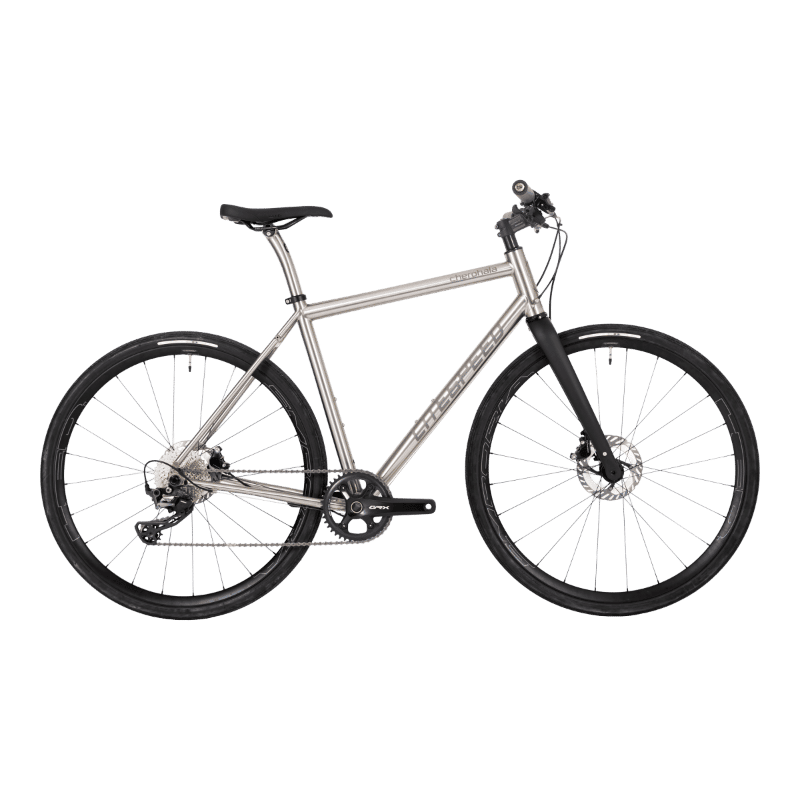

2026 Litespeed Cherohala City geometry
Full frame geometry for the 2026 Litespeed Cherohala City, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 550 | 370 | 74.5 | 71 | 106 | 523 | 460 | 734 | 76 | 591 | 430 | 1009 | 50 |
| M | 575 | 375 | 74.5 | 71 | 132 | 534 | 490 | 769 | 71 | 604 | 430 | 1024 | 50 |
| M/L | 600 | 380 | 74 | 71.5 | 162 | 552 | 520 | 797 | 71 | 614 | 430 | 1034 | 50 |
| L | 625 | 385 | 73.5 | 72 | 186 | 570 | 550 | 825 | 71 | 622 | 430 | 1042 | 50 |
| XL | 650 | 390 | 73 | 72 | 217 | 589 | 580 | 858 | 66 | 636 | 430 | 1057 | 50 |
All measurements in millimetres unless marked (°) for angles.
